UCD1E681MNL1GS

Active

NICHICON

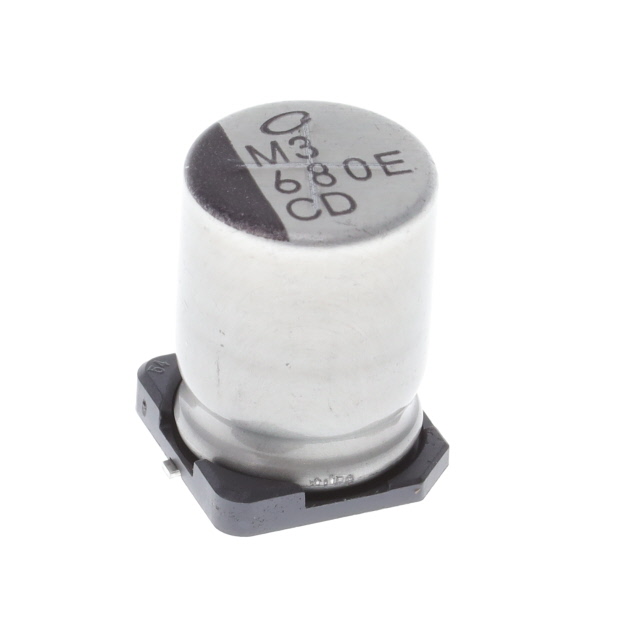

CAPACITOR: ELECTROLYTIC; LOW ESR; SMD; 680UF; 25VDC; Ø10X13.5MM

Search across all available documentation for this part.

Active

NICHICON

CAPACITOR: ELECTROLYTIC; LOW ESR; SMD; 680UF; 25VDC; Ø10X13.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	UCD1E681MNL1GS

Applications	Automotive
Capacitance	680 µF
Height - Seated (Max)	14.3 mm
Height - Seated (Max) [Max]	0.563 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Polarization	Polar
Ratings	AEC-Q200
Ripple Current @ High Frequency	950 mA
Ripple Current @ Low Frequency	475 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Surface Mount Land Size [x]	0.406 in
Surface Mount Land Size [x]	10.3 mm
Surface Mount Land Size [y]	10.3 mm
Surface Mount Land Size [y]	0.406 "
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Polarization	Height - Seated (Max)	Height - Seated (Max) [Max]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Lifetime @ Temp.	Ratings	Voltage - Rated	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Mounting Type	Applications	Capacitance
NICHICON UCD1E681MNL1GS	Polar	14.3 mm	0.563 in	10.3 mm	0.406 in	10.3 mm	0.406 "	105 ░C	-55 °C	950 mA	475 mA	5000 Hrs	AEC-Q200	25 VDC	20 %	10 mm	0.394 in	Radial Can - SMD	Surface Mount	Automotive	680 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

680 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
