M4A3-384/192-10FANC

Obsolete

LATTICE SEMICONDUCTOR

CPLD ISPMACH 4A FAMILY 15K GATES 384 MACRO CELLS 83.3MHZ/118MHZ 3.3V 256-PIN FBGA TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M4A3-384/192-10FANC

Obsolete

LATTICE SEMICONDUCTOR

CPLD ISPMACH 4A FAMILY 15K GATES 384 MACRO CELLS 83.3MHZ/118MHZ 3.3V 256-PIN FBGA TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M4A3-384/192-10FANC

Delay Time tpd(1) Max [Max]	10 ns
Mounting Type	Surface Mount
Number of I/O	192
Number of Macrocells	384
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C

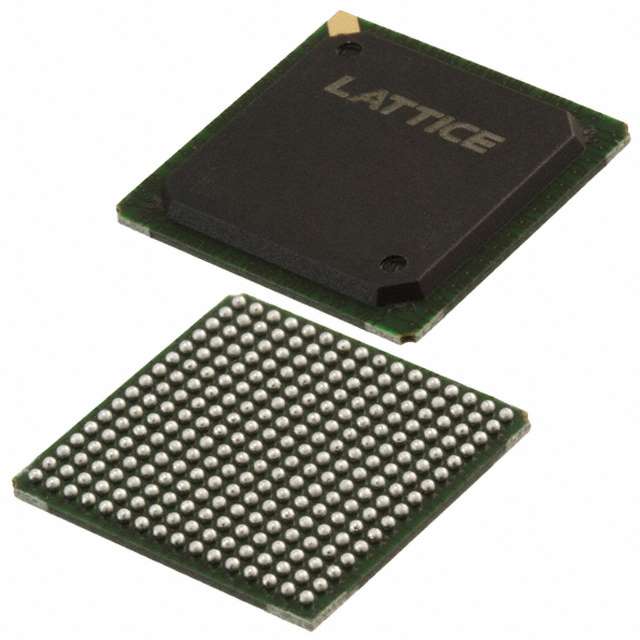

Package / Case	256-BGA
Programmable Type	In System Programmable
Supplier Device Package	256-FPBGA (17x17)
Voltage Supply - Internal [Max]	3.6 V
Voltage Supply - Internal [Min]	3 V

M4A3-384 Series

Part	Programmable Type	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of I/O	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Delay Time tpd(1) Max [Max]	Number of Macrocells
LATTICE SEMICONDUCTOR M4A3-384/160-10YI	In System Programmable	3 V	3.6 V	160	208-BFQFP	85 °C	-40 °C	Surface Mount	208-PQFP (28x28)	10 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-12FANC	In System Programmable	3 V	3.6 V	192	256-BGA	70 °C	0 °C	Surface Mount	256-FPBGA (17x17)	12 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-10FANC	In System Programmable	3 V	3.6 V	192	256-BGA	70 °C	0 °C	Surface Mount	256-FPBGA (17x17)	10 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-10FAC	In System Programmable	3 V	3.6 V	192	256-BGA	70 °C	0 °C	Surface Mount	256-FPBGA (17x17)	10 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-65FANC	In System Programmable	3 V	3.6 V	192	256-BGA	70 °C	0 °C	Surface Mount	256-FPBGA (17x17)	6.5 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-65SAC	In System Programmable	3 V	3.6 V	192	256-LBGA	70 °C	0 °C	Surface Mount	256-SBGA (27x27)	6.5 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-14SAI	In System Programmable	3 V	3.6 V	192	256-LBGA	85 °C	-40 °C	Surface Mount	256-SBGA (27x27)	14 ns	384
LATTICE SEMICONDUCTOR M4A3-384/160-12YI	In System Programmable	3 V	3.6 V	160	208-BFQFP	85 °C	-40 °C	Surface Mount	208-PQFP (28x28)	12 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-10SAC	In System Programmable	3 V	3.6 V	192	256-LBGA	70 °C	0 °C	Surface Mount	256-SBGA (27x27)	10 ns	384
LATTICE SEMICONDUCTOR M4A3-384/192-12SAI	In System Programmable	3 V	3.6 V	192	256-LBGA	85 °C	-40 °C	Surface Mount	256-SBGA (27x27)	12 ns	384

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 89.34
		10	$ 59.56
		50	$ 51.05
		100	$ 35.74
		500	$ 33.72
		1000	$ 32.49

Description

General part information

M4A3-384 Series

CPLD ISPMACH 4A FAMILY 15K GATES 384 MACRO CELLS 83.3MHZ/118MHZ 3.3V 256-PIN FBGA TRAY

Documents

Technical documentation and resources
