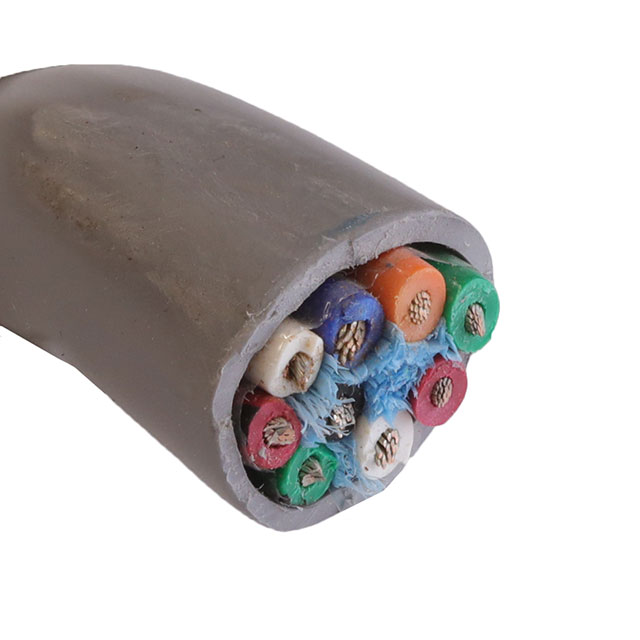

1279 SL005

Active

ALPHA WIRE

CABLE 9COND 14AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 9COND 14AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1279 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.0147 in
Jacket (Insulation) Diameter [diameter]	18.9 mm
Jacket (Insulation) Diameter [diameter]	0.744 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.065 in
Jacket (Insulation) Thickness	1.651 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Cable Type	Number of Conductors	Jacket (Insulation) Material	Conductor Strand [diameter]	Conductor Strand [custom]	Jacket Color	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Length [x]	Length [x]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Wire Gauge
ALPHA WIRE 1279 SL005	Multi-Conductor	9	Poly-Vinyl Chloride (PVC)	0.0147 in	19 Strands	Slate	600 V	18.9 mm	0.744 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Copper Tinned	0.065 in	1.651 mm	Communication Control	13.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 14.52

General part information

9 Conductor Multi-Conductor Cable Slate 14 AWG 100.0' (30.5m)
