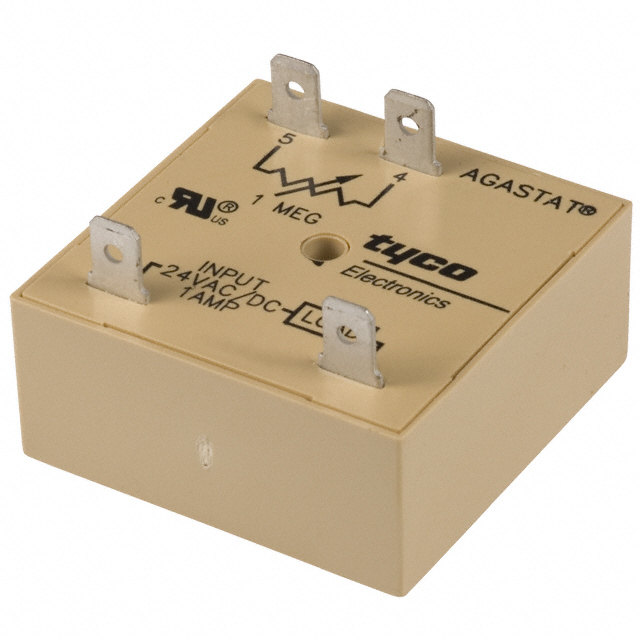

VTM1EDD
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY TIME DELAY 60SEC 1A 120V
Deep-Dive with AI
Search across all available documentation for this part.
VTM1EDD
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY TIME DELAY 60SEC 1A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VTM1EDD |
|---|---|
| Contact Rating @ Voltage | 1 A, 120 VAC |
| Delay Time [Max] | 60 Sec |
| Delay Time [Min] | 3 Sec |
| Function | On-Delay |
| Mounting Type | Chassis Mount |
| Relay Type | Solid State Relay |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Timing Adjustment Method | External Resistor |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 100.59 | |
Description
General part information
VTM1E Series
On-Delay Time Delay Relay SPST-NO (1 Form A) 3 Sec ~ 60 Sec Delay 1A @ 120VAC Chassis Mount
Documents
Technical documentation and resources
No documents available
