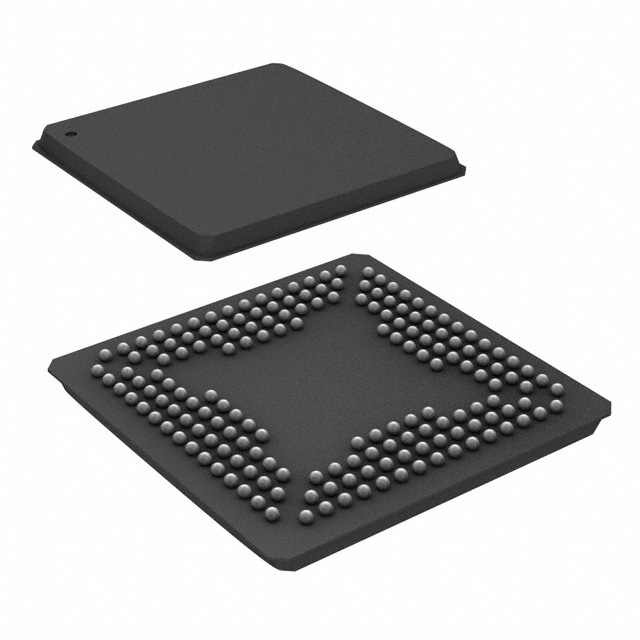

XIO2200ZGW

Obsolete

Texas Instruments

IC INTERFACE SPECIALIZED 176BGA

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC INTERFACE SPECIALIZED 176BGA

Technical Specifications

Parameters and characteristics for this part

Specification	XIO2200ZGW

Applications	PCI Express to PCI Translation Bridge
Interface	PCI
Mounting Type	Surface Mount
Package / Case	176-LFBGA
Supplier Device Package	176-BGA MICROSTAR (15x15)
Voltage - Supply [Max]	3.6 V, 1.65 V
Voltage - Supply [Min]	1.35 V, 3 V

Part	Supplied Contents	Function	Utilized IC / Part	Secondary Attributes	Type	Supplier Device Package	Applications	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Interface
Texas Instruments XIO2200AEVM	Board(s)	PCI to PCI Bridge	XIO2200A	On-Board LEDs	Interface
Texas Instruments XIO2200AGGW						176-BGA MICROSTAR (15x15)	PCI Express to PCI Translation Bridge	176-LFBGA	1.35 V 3 V	1.65 V 3.6 V	Surface Mount	PCI
Texas Instruments XIO2200ZGW						176-BGA MICROSTAR (15x15)	PCI Express to PCI Translation Bridge	176-LFBGA	1.35 V 3 V	1.65 V 3.6 V	Surface Mount	PCI
Texas Instruments XIO2200AZGW						176-BGA MICROSTAR (15x15)	PCI Express to PCI Translation Bridge	176-LFBGA	1.35 V 3 V	1.65 V 3.6 V	Surface Mount	PCI
Texas Instruments XIO2200GGW						176-BGA MICROSTAR (15x15)	PCI Express to PCI Translation Bridge	176-LFBGA	1.35 V 3 V	1.65 V 3.6 V	Surface Mount	PCI
Texas Instruments XIO2200AZHH						175-BGA MICROSTAR (12x12)	PCI Express to PCI Translation Bridge	175-LFBGA	1.35 V 3 V	1.65 V 3.6 V	Surface Mount	PCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PCI Express to PCI Translation Bridge Interface 176-BGA MICROSTAR (15x15)
