HRM-517(40)

Active

Hirose Electric USA, Inc.

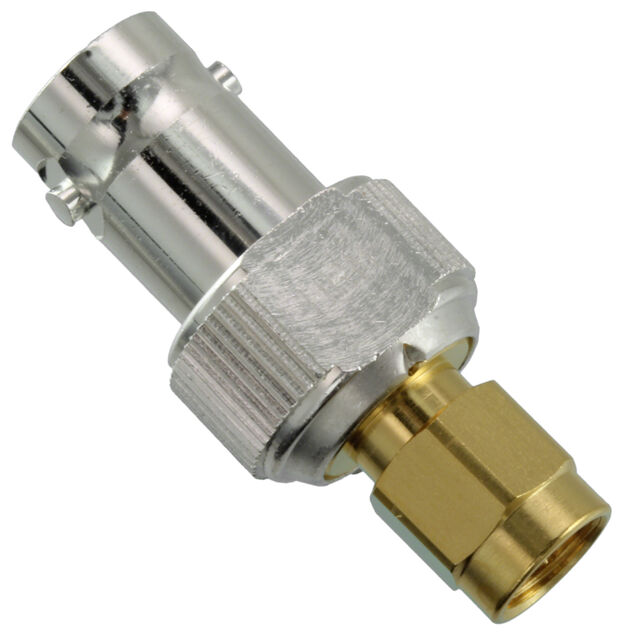

CONN ADAPT BNC JACK TO SMA PLUG

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN ADAPT BNC JACK TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-517(40)

Adapter Series	BNC to SMA
Adapter Type	Plug to Jack
Body Finish	Silver; Passivated
Body Material	Brass, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Convert From (Adapter End)	Conversion Type	Adapter Series	Mounting Type	Convert To (Adapter End)	Style	Fastening Type	Adapter Type	Impedance	Body Material	Body Finish	Dielectric Material	Mating Cycles	Center Contact Plating	Frequency - Max [Max]	Center Contact Material
Hirose Electric USA, Inc. HRM-517(09)	SMA Plug Male Pin	Between Series	BNC to SMA	Free Hanging (In-Line)	BNC Jack Female Socket	Straight	Bayonet Lock Threaded	Plug to Jack	50 Ohms
Hirose Electric USA, Inc. HRM-517(40)	BNC Jack Female Socket	Between Series	BNC to SMA	Free Hanging (In-Line)	Male Pin SMA Plug	Straight	Bayonet Lock Threaded	Plug to Jack	50 Ohms	Brass Stainless Steel	Silver; Passivated	Polytetrafluoroethylene (PTFE)	1000	Gold	4 GHz	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
