VCA2614EVM

Active

Texas Instruments

VCA2614EVM

Search across all available documentation for this part.

Active

Texas Instruments

VCA2614EVM

Technical Specifications

Parameters and characteristics for this part

Specification	VCA2614EVM

-3db Bandwidth	40 MHz
Board Type	Fully Populated
Channels per IC	2 - Dual
Current - Output / Channel [custom]	40 mA
Output Type	Differential
Slew Rate	300 V/µs
Supplied Contents	Board(s)
Utilized IC / Part	VCA2614
Voltage - Supply, Single/Dual (±) [Max]	5.25 V
Voltage - Supply, Single/Dual (±) [Min]	4.75 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Gain Bandwidth Product	Current - Input Bias	Supplier Device Package	Package / Case	Output Type	Slew Rate	Voltage - Supply Span (Min) [Min]	Voltage - Supply Span (Max) [Max]	Current - Output / Channel [custom]	Number of Circuits	-3db Bandwidth	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Supplied Contents	Utilized IC / Part	Board Type	Channels per IC
Texas Instruments VCA2614Y/2K	85 °C	-40 °C	Surface Mount	100 MHz	1 nA	32-TQFP (5x5)	32-TQFP	Differential	300 V/µs	4.75 V	5.25 V	40 mA	2	40 MHz
Texas Instruments VCA2614EVM								Differential	300 V/µs			40 mA		40 MHz	5.25 V	4.75 V	Board(s)	VCA2614	Fully Populated	2 - Dual
Texas Instruments VCA2614Y/250	85 °C	-40 °C	Surface Mount	100 MHz	1 nA	32-TQFP (5x5)	32-TQFP	Differential	300 V/µs	4.75 V	5.25 V	40 mA	2	40 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 104.54

General part information

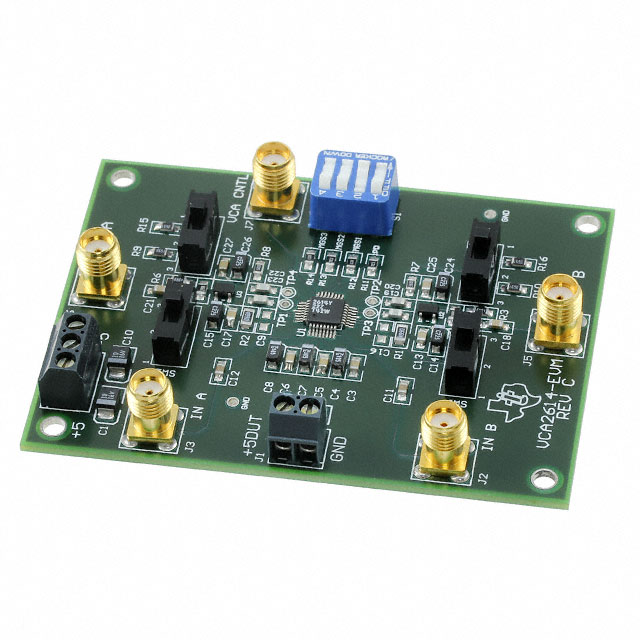

VCA2614 2 - Dual Channels per IC Variable Gain Amplifier Evaluation Board
