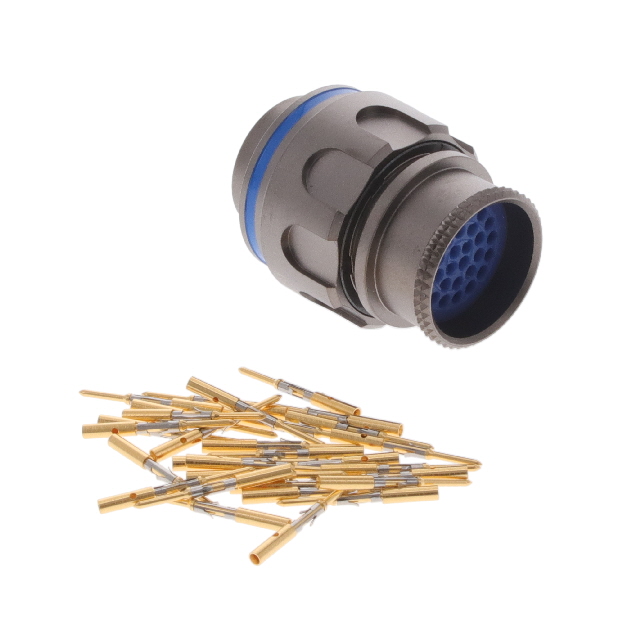

FGN.3M.330.XLCT

Active

LEMO

CONN PLUG MALE 30POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 30POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FGN.3M.330.XLCT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.591 in
Cable Opening [custom]	15 mm
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	3.5 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	330
Shielding	Shielded
Termination	Crimp

Part	Shielding	Insert Material	Features	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Mounting Type	Ingress Protection	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Shell Finish	Termination	Current Rating (Amps)	Number of Positions	Shell Size - Insert	Color	Applications	Connector Type	Cable Opening [custom]	Cable Opening [custom]
LEMO FGN.3M.330.XLCT	Shielded	Polyetheretherketone (PEEK)	Coupling Nut	Gold	Brass	1 µm	39.4 µin	N	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Metal	-55 °C	200 °C	Aluminum Alloy	Nickel	Crimp	3.5 A	30	330	Gray	Aerospace Automotive Aviation Military	Male Pins Plug	0.591 in	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Circular Connector Plug, Male Pins Crimp
