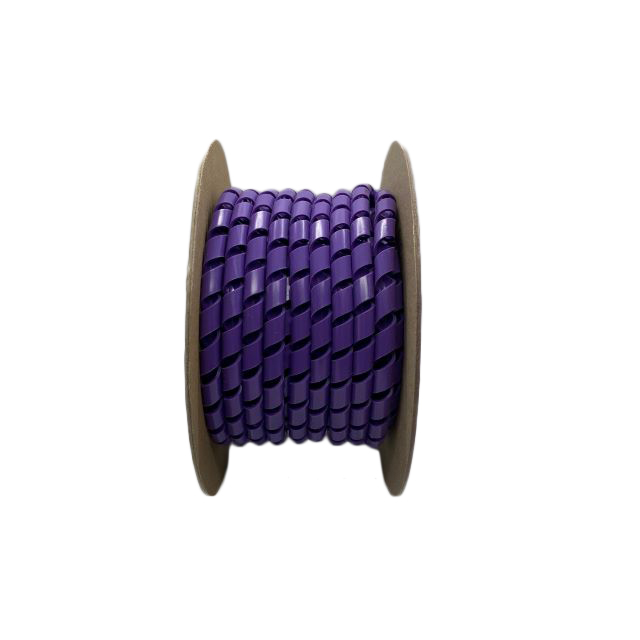

HT 1/4 C PU

Active

MM Newman Corporation

SPIRAL WRAP 0.16" X 100' PURPLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1/4 C PU

Active

MM Newman Corporation

SPIRAL WRAP 0.16" X 100' PURPLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT 1/4 C PU

Abrasion Protection	Abrasion Resistant
Color	Purple
Diameter - Inside, Expanded [diameter]	2 in
Diameter - Inside, Expanded [diameter]	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	0.16 in
Diameter - Inside, Non-Expanded [diameter]	4.06 mm
Diameter - Outside, Non-Expanded [diameter]	6.35 mm
Diameter - Outside, Non-Expanded [diameter]	0.25 in
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.14 mm
Wall Thickness	0.045 in

HT 1/4 Series

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material Flammability Rating	Abrasion Protection	Length	Length	Wall Thickness	Wall Thickness	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Heat Protection	Type	Features	Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Environment Protection	Wall Thickness [custom]	Wall Thickness [custom]
MM Newman Corporation HT 1/4 R-B	6.35 mm	0.25 in	UL94 V-2 UL1441	Abrasion Resistant	100 ft	30.48 m	1.14 mm	0.045 in	0.16 in	4.06 mm	Harness	Fire Resistant	Spiral Wrap	Chemical Resistant Solvent Resistant	Polyethylene (PE)	-20 C	80 C	Black	2 in	50.8 mm
MM Newman Corporation HT 1/4 N-B	6.35 mm	0.25 in		Abrasion Resistant	100 ft	30.48 m			0.2 in	5.08 mm	Harness		Spiral Wrap	Chemical Resistant Self Extinguishing Solvent Resistant	Nylon	-40 °C	121 °C	Black	2 in	50.8 mm	UV Resistant	0.025 in	0.64 mm
MM Newman Corporation HT 1/4 N	6.35 mm	0.25 in		Abrasion Resistant	100 ft	30.48 m			0.2 in	5.08 mm	Harness		Spiral Wrap	Chemical Resistant Self Extinguishing Solvent Resistant	Nylon	-40 °C	121 °C	Natural	2 in	50.8 mm		0.025 in	0.64 mm
MM Newman Corporation HT 1/4 T	6.35 mm	0.25 in	UL VW-1 UL94 V-0	Abrasion Resistant	100 ft	30.48 m			0.187 in	4.75 mm	Harness	Fire Resistant	Spiral Wrap	Chemical Resistant Solvent Resistant	Polytetrafluoroethylene (PTFE)	-268 °C	260 ░C	Natural	2 in	50.8 mm	UV Resistant	0.03 in	0.76 mm
MM Newman Corporation HT 1/4 C BLU	6.35 mm	0.25 in		Abrasion Resistant	100 ft	30.48 m	1.14 mm	0.045 in	0.16 in	4.06 mm	Harness		Spiral Wrap	Chemical Resistant Solvent Resistant	Polyethylene (PE)	-60 °C	88 °C	Blue	2 in	50.8 mm
MM Newman Corporation HT 1/4 C PU	6.35 mm	0.25 in		Abrasion Resistant	100 ft	30.48 m	1.14 mm	0.045 in	0.16 in	4.06 mm	Harness		Spiral Wrap	Chemical Resistant Solvent Resistant	Polyethylene (PE)	-60 °C	88 °C	Purple	2 in	50.8 mm
MM Newman Corporation HT 1/4 C OR	6.35 mm	0.25 in		Abrasion Resistant	100 ft	30.48 m	1.14 mm	0.045 in	0.16 in	4.06 mm	Harness		Spiral Wrap	Chemical Resistant Solvent Resistant	Polyethylene (PE)	-60 °C	88 °C		2 in	50.8 mm
MM Newman Corporation HT 1/4 C	6.35 mm	0.25 in		Abrasion Resistant	100 ft	30.48 m	1.14 mm	0.045 in	0.16 in	4.06 mm	Harness		Spiral Wrap	Chemical Resistant Solvent Resistant	Polyethylene (PE)	-60 °C	88 °C	Natural	2 in	50.8 mm
MM Newman Corporation HT 1/4 UR	6.35 mm	0.25 in		Abrasion Resistant	100 ft	30.48 m	1.14 mm	0.045 in	0.16 in	4.06 mm	Harness		Spiral Wrap	Chemical Resistant Solvent Resistant	Polyethylene (PE)	-60 °C	88 °C	Black	2 in	50.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 56.51
		10	$ 44.54

Description

General part information

HT 1/4 Series

Spiral Wrap 0.250" (6.35mm) X 100' (30.48m) Purple
