T9AS1D27-24

Active

TE Connectivity Potter & Brumfield Relays

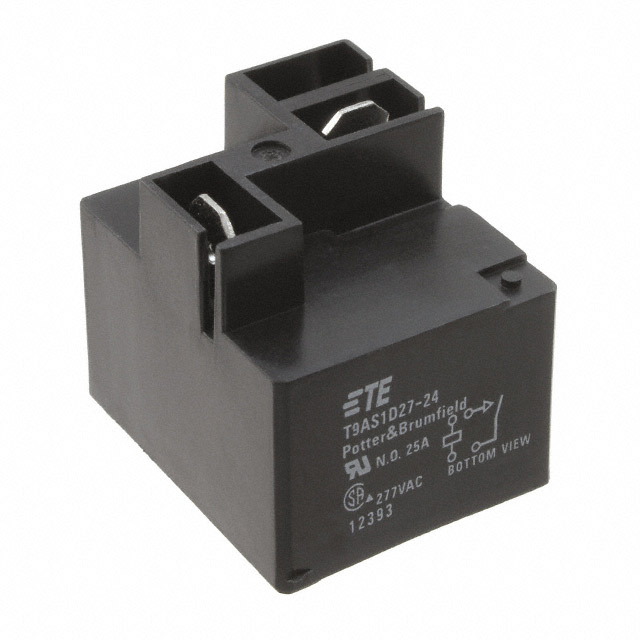

RELAY GEN PURPOSE SPST 21A 24V

Deep-Dive with AI

Search across all available documentation for this part.

T9AS1D27-24

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 21A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9AS1D27-24

Coil Current	41.7 mA
Coil Insulation	Class F
Coil Resistance	576 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	21 A
Load - Max Switching	5817 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	15 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	277 VAC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

T9AS1 Series

Part	Mounting Type	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Contact Form	Release Time	Operate Time	Termination Style	Relay Type	Load - Max Switching	Contact Material	Coil Insulation	Coil Resistance	Must Release Voltage	Contact Rating (Current)	Coil Type	Switching Voltage [Max]	Coil Voltage	Must Operate Voltage	Termination Style
TE Connectivity Potter & Brumfield Relays T9AS1L12-24	Through Hole	Sealed - Fully	85 °C	-55 °C	37.5 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin	General Purpose	8310 VA	Silver Cadmium Oxide (AgCdO)	Class F	660 Ohms	2.4 VDC	30 A	Non Latching	277 VAC	24 VDC	18 VDC
TE Connectivity Potter & Brumfield Relays T9AS1D14-5	Through Hole	Sealed - Fully	85 °C	-55 °C	200 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin	General Purpose	8310 VA	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	25 Ohms	0.5 VDC	30 A	Non Latching	277 VAC	5 VDC	3.75 VDC
TE Connectivity Potter & Brumfield Relays T9AS1D22-48	Through Hole	Sealed - Fully	85 °C	-55 °C	21 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin Quick Connect	General Purpose	8310 VA	Silver Cadmium Oxide (AgCdO)	Class F	2.3 kOhms	4.8 VDC	30 A	Non Latching	277 VAC	48 VDC	36 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9AS1D12-9	Through Hole	Sealed - Fully	85 °C	-55 °C		SPST-NO (1 Form A)	15 ms	15 ms	PC Pin	General Purpose	8310 VA	Silver Cadmium Oxide (AgCdO)	Class F	81 Ohms	0.9 VDC	30 A	Non Latching	277 VAC	9 VDC	6.75 VDC
TE Connectivity Potter & Brumfield Relays T9AS1D17-24	Through Hole	Sealed - Fully	85 °C	-55 °C	41.7 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin	General Purpose	5817 VA	Silver Cadmium Oxide (AgCdO)	Class F	576 Ohms	2.4 VDC	21 A	Non Latching	277 VAC	24 VDC	18 VDC
TE Connectivity Potter & Brumfield Relays T9AS1L22-12	Through Hole	Sealed - Fully	85 °C	-55 °C	75 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin Quick Connect	General Purpose	8310 VA	Silver Cadmium Oxide (AgCdO)	Class F	155 Ohms	1.2 VDC	30 A	Non Latching	277 VAC	12 VDC	9 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9AS1D14-24	Through Hole	Sealed - Fully	85 °C	-55 °C	41.7 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin	General Purpose	8310 VA	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	576 Ohms	2.4 VDC	30 A	Non Latching	277 VAC	24 VDC	18 VDC
TE Connectivity Potter & Brumfield Relays T9AS1D17-5	Through Hole	Sealed - Fully	85 °C	-55 °C	200 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin	General Purpose	5540 VA	Silver Cadmium Oxide (AgCdO)	Class F	25 Ohms	0.5 VDC	20 A	Non Latching	277 VAC	5 VDC	3.75 VDC
TE Connectivity Potter & Brumfield Relays T9AS1D27-24	Through Hole	Sealed - Fully	85 °C	-55 °C	41.7 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin Quick Connect	General Purpose	5817 VA	Silver Cadmium Oxide (AgCdO)	Class F	576 Ohms	2.4 VDC	21 A	Non Latching	277 VAC	24 VDC	18 VDC	0.25 in
TE Connectivity Potter & Brumfield Relays T9AS1D12-12	Through Hole	Sealed - Fully	85 °C	-55 °C	83 mA	SPST-NO (1 Form A)	15 ms	15 ms	PC Pin	General Purpose	8310 VA	Silver Cadmium Oxide (AgCdO)	Class F	144 Ohms	1.2 VDC	30 A	Non Latching	277 VAC	12 VDC	9 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 4.26

Description

General part information

T9AS1 Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
