AD-HDBNJMCP-12G

Active

Amphenol RF

RF / COAXIAL ADAPTER, BNC HD, JACK, MCX, PLUG, STRAIGHT ADAPTER, 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL ADAPTER, BNC HD, JACK, MCX, PLUG, STRAIGHT ADAPTER, 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	AD-HDBNJMCP-12G

Adapter Series	MCX, HD, BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC HD Jack, Female Socket
Convert To (Adapter End)	Male Pin, MCX Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Bayonet Lock
Frequency - Max [Max]	12 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Conversion Type	Dielectric Material	Impedance	Adapter Series	Frequency - Max [Max]	Convert To (Adapter End)	Body Finish	Body Material	Mounting Type	Center Contact Material	Fastening Type	Center Contact Plating	Mating Cycles	Adapter Type	Style	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF AD-HDBNJMCP-12G	Between Series	Polytetrafluoroethylene (PTFE)	75 Ohms	BNC HD MCX	12 GHz	Male Pin MCX Plug	Nickel	Beryllium Copper Brass	Free Hanging (In-Line)	Beryllium Copper	Bayonet Lock Snap-On	Gold	500	Plug to Jack	Straight	BNC HD Jack Female Socket	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

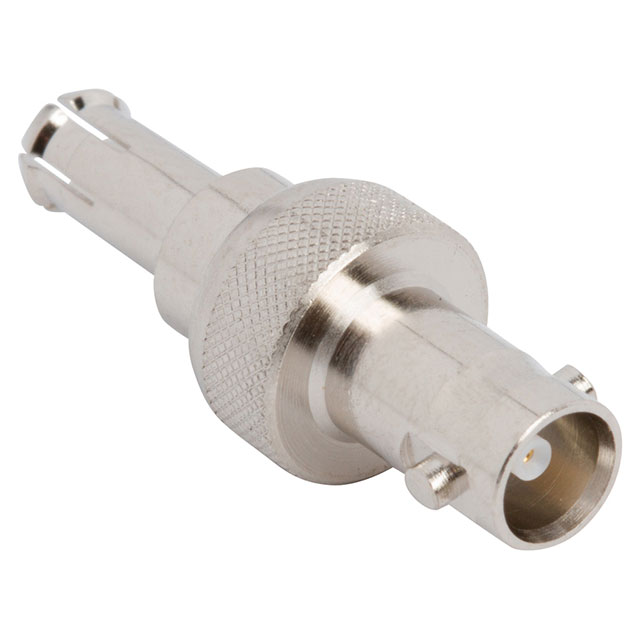

Adapter Coaxial Connector BNC HD Jack, Female Socket To MCX Plug, Male Pin 75 Ohms
