1243/2C SL002
ActiveMULTIPAIR CABLE, COMMUNICATION, SHIELDED, 2 PAIR, 22 AWG, 0.36 MM², 500 FT, 152.4 M
Deep-Dive with AI
Search across all available documentation for this part.
1243/2C SL002
ActiveMULTIPAIR CABLE, COMMUNICATION, SHIELDED, 2 PAIR, 22 AWG, 0.36 MM², 500 FT, 152.4 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1243/2C SL002 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.22 mm |
| Jacket (Insulation) Diameter [diameter] | 0.245 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.762 mm |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | Slate |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1243/2C Series

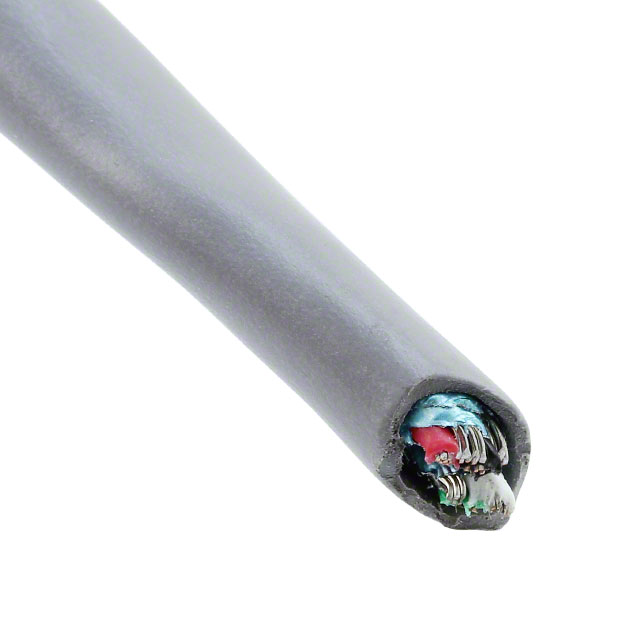

The 1243/2C SL002 is a 500ft 2-pair slate individually shielded Communication and Control Cable with stranded tinned copper conductors and polypropylene insulation. The cable has an aluminium shield for moderate EMI protection. It has aluminium/polyester foil shield with 25% minimum overlap, foil facing in-ward stranded tinned copper drain wire.
