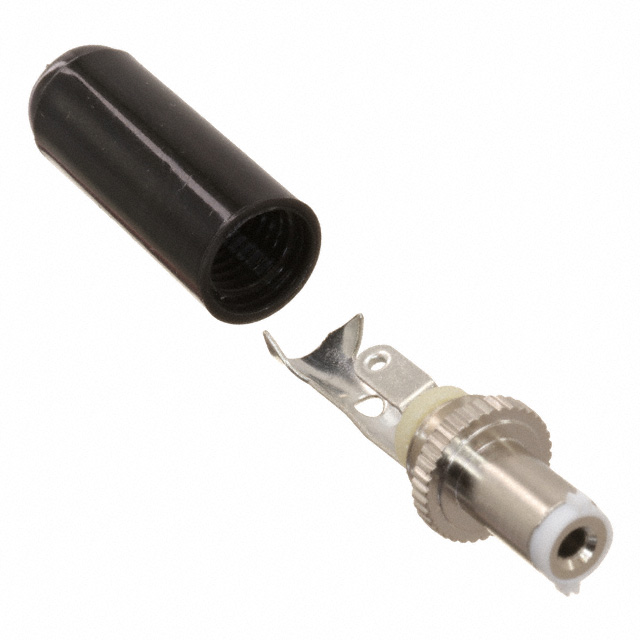

S760BK

Active

Switchcraft Inc.

CONN POWER PLUG SOLDER EYELET

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN POWER PLUG SOLDER EYELET

Technical Specifications

Parameters and characteristics for this part

Specification	S760BK

Body Color	Silver, Black
Body Material	Brass
Connector Type	Plug
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	5 A
Features	Cable Clamp, Thread Lock
Gender	Female
Housing Material	Thermoplastic
Includes	1 Connector, 1 Handle
Insulation Color	White
Internal Switch(s)	False
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Shielding	Unshielded
Termination	Solder Eyelet(s)

Part	Termination	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Current Rating (Amps)	Contact Material - Plating	Body Color	Contact Material	Insulation Color	Features	Shielding	Housing Material	Includes	Gender	Mounting Type	Body Material	Internal Switch(s)	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]
Switchcraft Inc. S760BK	Solder Eyelet(s)	2	2	5 A	Tin	Black Silver	Brass	White	Cable Clamp Thread Lock	Unshielded	Thermoplastic	1 Connector 1 Handle	Female	Free Hanging (In-Line)	Brass		Plug
Switchcraft Inc. S760K	Solder Eyelet(s)	2	2	5 A	Tin	Black Silver	Brass	Black	Cable Clamp Thread Lock	Unshielded	Thermoplastic	1 Connector 1 Handle	Female	Free Hanging (In-Line)	Brass		Plug	0.079 in 0.217 in	2 mm 5.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug Free Hanging (In-Line)
