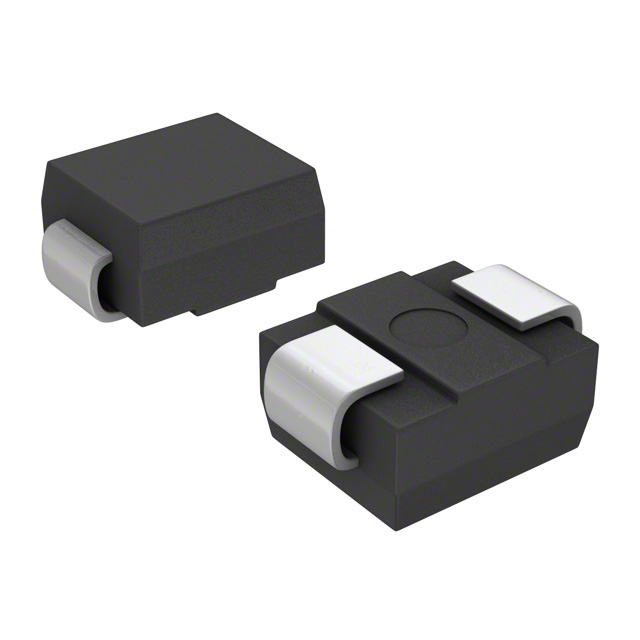

1KSMB20CA

Active

Taiwan Semiconductor Corporation

1000W, 20V, 5%, BIDIRECTIONAL, TVS

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

1000W, 20V, 5%, BIDIRECTIONAL, TVS

Technical Specifications

Parameters and characteristics for this part

Specification	1KSMB20CA

Applications	General Purpose
Bidirectional Channels [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	1000 W
Power - Peak Pulse	1 kW
Power Line Protection	False
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Type	Zener
Voltage - Breakdown (Min) [Min]	19 V
Voltage - Clamping (Max) @ Ipp [Max]	27.7 V
Voltage - Reverse Standoff (Typ)	17.1 V

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Type	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Power - Peak Pulse	Unidirectional Channels [custom]	Package / Case	Mounting Type	Supplier Device Package	Supplier Device Package	Qualification	Applications	Bidirectional Channels [custom]
Taiwan Semiconductor Corporation 1KSMB20AHR5G	Automotive	-55 °C	175 ░C	19 V	Zener	17.1 V	27.7 V	1000 W	1 kW	1	DO-214AA SMB	Surface Mount	SMB	DO-214AA	AEC-Q101
Taiwan Semiconductor Corporation 1KSMB20CA		-55 °C	175 ░C	19 V	Zener	17.1 V	27.7 V	1000 W	1 kW		DO-214AA SMB	Surface Mount	SMB	DO-214AA		General Purpose	1
Taiwan Semiconductor Corporation 1KSMB20A R5G		-55 °C	175 ░C	19 V	Zener	17.1 V	27.7 V	1000 W	1 kW	1	DO-214AA SMB	Surface Mount	SMB	DO-214AA		General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.20

General part information

27.7V Clamp 36.1A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
