M13109 SL005

Active

ALPHA WIRE

MULTI-PAIR 18COND 22AWG 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 18COND 22AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M13109 SL005

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	10.46 mm
Jacket (Insulation) Diameter [diameter]	0.412 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Material	Ratings	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Number of Conductors	Shield Coverage	Shield Type	Jacket Color	Length	Length	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Insulation	Length [x]	Length [x]
ALPHA WIRE M13109 SL199	10.46 mm	0.412 in	Multi-Pair	Copper Tinned	UL Style 2919	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Aluminum	18	100 %	Foil	Slate	914.4 m	3000 ft	22 AWG	28	7	300 V	Polypropylene (PP)
ALPHA WIRE M13109 SL005	10.46 mm	0.412 in	Multi-Pair	Copper Tinned	UL Style 2919	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Aluminum	18	100 %	Foil	Slate			22 AWG	28	7	300 V	Polypropylene (PP)	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

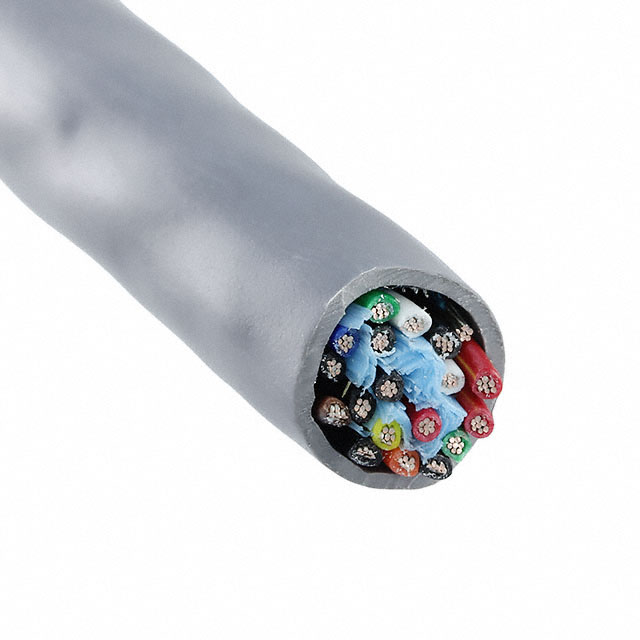

18 (9 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 100.0' (30.5m)
