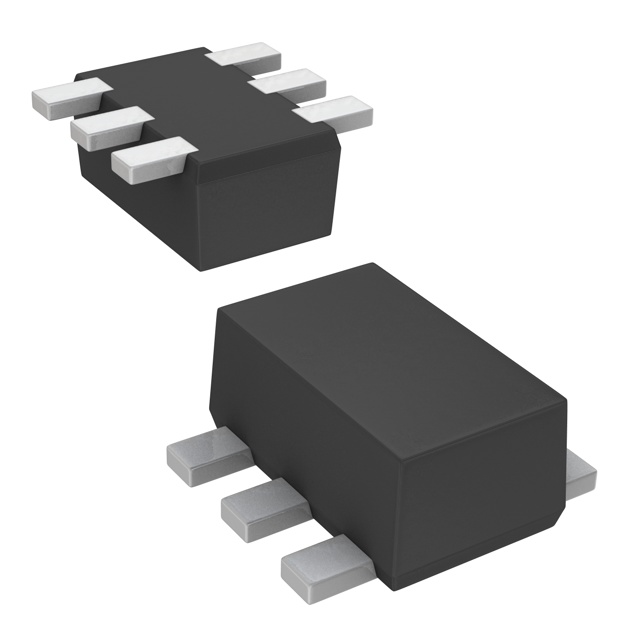

UP0487800L

Obsolete

Panasonic Industrial Automation Sales

MOSFET 2N-CH 50V 0.1A SSMINI6

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

MOSFET 2N-CH 50V 0.1A SSMINI6

Technical Specifications

Parameters and characteristics for this part

Specification	UP0487800L

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	100 mA
Drain to Source Voltage (Vdss)	50 V
FET Feature	Logic Level Gate
Input Capacitance (Ciss) (Max) @ Vds	12 pF
Mounting Type	Surface Mount
Operating Temperature	125 ¯C
Package / Case	SOT-666, SOT-563
Power - Max [Max]	125 mW
Rds On (Max) @ Id, Vgs	12 Ohm
Supplier Device Package	SSMINI6-F1
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.5 V

Part	Technology	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Drain to Source Voltage (Vdss)	Package / Case	Power - Max [Max]	Rds On (Max) @ Id, Vgs	Operating Temperature	FET Feature	Configuration	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id
Panasonic Industrial Automation Sales UP0487800L	MOSFET (Metal Oxide)	Surface Mount	12 pF	SSMINI6-F1	50 V	SOT-563 SOT-666	125 mW	12 Ohm	125 ¯C	Logic Level Gate	2 N-Channel (Dual)	100 mA	1.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 50V 100mA 125mW Surface Mount SSMINI6-F1
