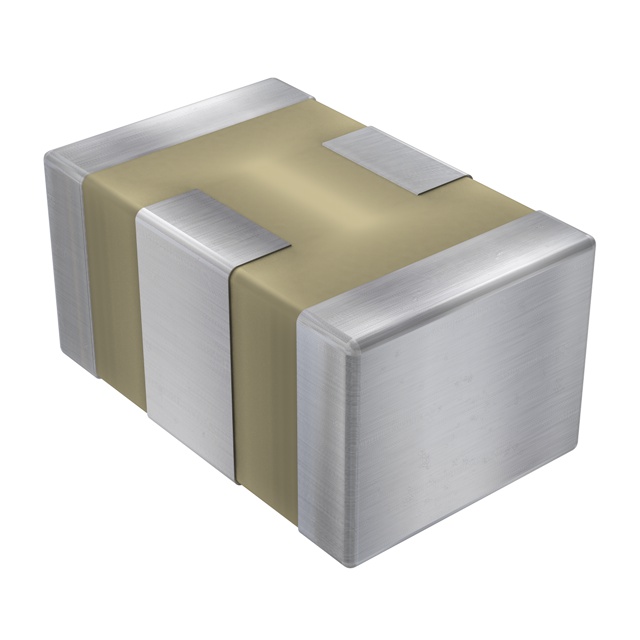

0805Y1000182MXTE03

Active

Knowles Johanson Manufacturing

CAP CER 1800PF 100V X7R 0805

Deep-Dive with AI

Search across all available documentation for this part.

0805Y1000182MXTE03

Active

Knowles Johanson Manufacturing

CAP CER 1800PF 100V X7R 0805

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0805Y1000182MXTE03

Applications	Bypass, Decoupling, Boardflex Sensitive
Capacitance	1800 pF
Features	Low ESL (X2Y), Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.045 in
Thickness (Max) [Max]	1.15 mm
Tolerance	20 %
Voltage - Rated	100 V

0805Y Series

...

Part	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Rated	Temperature Coefficient	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Tolerance	Features	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Voltage - Rated [custom]	Ratings
Knowles Johanson Manufacturing 0805Y5000392KDT	0805	2 mm	0.079 in	0.049 in	1.25 mm	500 V	X7R	3900 pF	-55 °C	125 °C	Boardflex Sensitive High Reliability	10 %	High Temperature Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount
Knowles Johanson Manufacturing 0805Y0160223KXT	0805	2 mm	0.079 in	0.049 in	1.25 mm		X7R	0.022 µF	-55 °C	125 °C	Boardflex Sensitive	10 %	Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount	16 V
Knowles Johanson Manufacturing 0805Y0632P20BAT	0805	2 mm	0.079 in	0.049 in	1.25 mm		C0G NP0 (1B)	2.2 pF	-55 °C	125 °C	Automotive Boardflex Sensitive	0.1 pF	Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount		AEC-Q200
Knowles Johanson Manufacturing 0805Y1000182MXTE03	0805	2 mm	0.079 in	0.049 in	1.25 mm	100 V	X7R	1800 pF	-55 °C	125 °C	Boardflex Sensitive Bypass Decoupling	20 %	Low ESL (X2Y) Soft Termination	0.045 in	1.15 mm	MLCC Surface Mount
Knowles Johanson Manufacturing 0805Y5003P90BFT	0805	2 mm	0.079 in	0.049 in	1.25 mm	500 V	C0G NP0	3.9 pF	-55 °C	125 °C	Boardflex Sensitive High Reliability	0.1 pF	High Temperature Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount
Knowles Johanson Manufacturing 0805Y1000182MET	0805	2 mm	0.079 in	0.049 in	1.25 mm	100 V	X7R	1800 pF	-55 °C	125 °C	Automotive Boardflex Sensitive	20 %	Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount		AEC-Q200
Knowles Johanson Manufacturing 0805Y0500822JXT	0805	2 mm	0.079 in	0.049 in	1.25 mm	50 VDC	X7R		-55 °C	125 °C	Boardflex Sensitive	5 %	Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount
Knowles Johanson Manufacturing 0805Y2000682MDT	0805	2 mm	0.079 in	0.049 in	1.25 mm	200 V	X7R	6800 pF	-55 °C	125 °C	Boardflex Sensitive High Reliability	20 %	High Temperature Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount
Knowles Johanson Manufacturing 0805Y0500124JXT	0805	2 mm	0.079 in	0.049 in	1.25 mm	50 VDC	X7R	0.12 µF	-55 °C	125 °C	Boardflex Sensitive	5 %	Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount
Knowles Johanson Manufacturing 0805Y6300562JXT	0805	2 mm	0.079 in	0.049 in	1.25 mm	630 V	X7R	5600 pF	-55 °C	125 °C	Boardflex Sensitive	5 %	Soft Termination	0.051 in	1.3 mm	MLCC Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.22

Description

General part information

0805Y Series

1800 pF ±20% 100V Ceramic Capacitor X7R 0805 (2012 Metric)

Documents

Technical documentation and resources

No documents available
