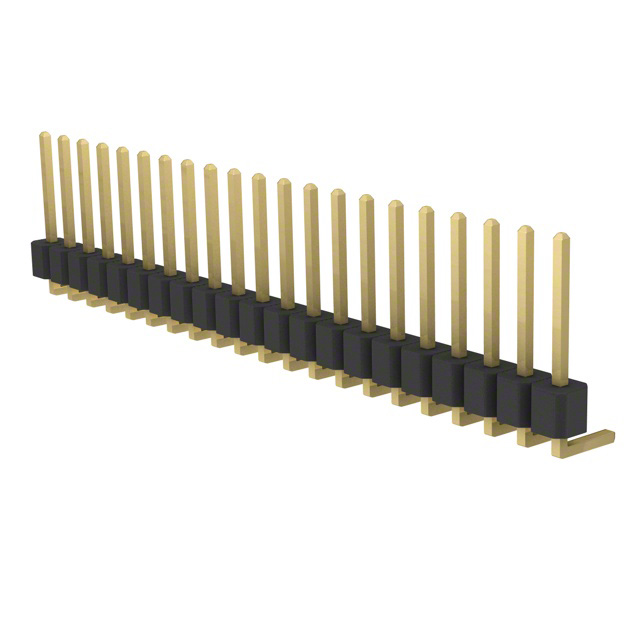

PRPC021SGAN-M71RC

Active

Sullins Connector Solutions

3A RIGHT-ANGLE GOLD 21P -40℃~+105℃ 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC021SGAN-M71RC

Active

Sullins Connector Solutions

3A RIGHT-ANGLE GOLD 21P -40℃~+105℃ 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC021SGAN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC021 Series

Part	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Type	Insulation Color	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Current Rating (Amps)	Fastening Type	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Finish - Mating	Style	Connector Type	Number of Positions Loaded	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Mounting Type	Contact Finish Thickness - Post	Number of Positions	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PRPC021SADN-RC	0.098 in	2.5 mm	UL94 V-0	Male Pin	Black	Gold	0.23 in	5.84 mm	3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C	19.01 mm	0.748 in	Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm	10.67 mm	0.42 in	1	Through Hole	Flash	21	Flash
Sullins Connector Solutions PRPC021SBCN-M71RC	0.098 in	2.5 mm	UL94 V-0	Male Pin	Black	Gold	0.23 in	5.84 mm	3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C			Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm	8.13 mm	0.32 in	1	Through Hole Right Angle	Flash	21	Flash
Sullins Connector Solutions PRPC021DBAN-M71RC			UL94 V-0	Male Pin	Black	Gold	0.23 in	5.84 mm	3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C			Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm	3.05 mm	0.12 in	2	Through Hole Right Angle	Flash	42	Flash	2.54 mm	0.1 in	0.197 in	5 mm
Sullins Connector Solutions PRPC021SAAN-RC	0.098 in	2.5 mm	UL94 V-0	Male Pin	Black	Gold	0.23 in	5.84 mm	3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C	11.39 mm	0.448 in	Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm	3.05 mm	0.12 in	1	Through Hole	Flash	21	Flash
Sullins Connector Solutions PRPC021SGAN-M71RC	0.098 in	2.5 mm	UL94 V-0	Male Pin	Black	Gold	0.318 "		3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C			Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm	3.05 mm	0.12 in	1	Through Hole Right Angle	Flash	21	Flash					8.08 mm
Sullins Connector Solutions PRPC021DABN-RC	0.098 in	2.5 mm	UL94 V-0	Male Pin	Black	Gold	0.23 in	5.84 mm	3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C	14.18 mm	0.558 in	Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm			2	Through Hole	Flash	42	Flash	2.54 mm	0.1 in				0.23 in	5.84 mm
Sullins Connector Solutions PRPC021SBAN-M71RC	0.098 in	2.5 mm	UL94 V-0	Male Pin	Black	Gold	0.23 in	5.84 mm	3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C			Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm	3.05 mm	0.12 in	1	Through Hole Right Angle	Flash	21	Flash
Sullins Connector Solutions PRPC021SFAN-RC	0.098 in	2.5 mm	UL94 V-0	Male Pin	Black	Gold	0.318 "		3 A	Push-Pull	Solder	Unshrouded	-40 °C	105 ░C	0.537 "		Polybutylene Terephthalate (PBT)	Gold	Board to Board Cable	Breakaway Header	All	Square	Brass	0.1 in	2.54 mm	3.05 mm	0.12 in	1	Through Hole	Flash	21	Flash					8.08 mm			13.63 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.63
		10	$ 0.55
		100	$ 0.46
		500	$ 0.40
		1000	$ 0.33
		5000	$ 0.29
		10000	$ 0.28
LCSC	Piece	1	$ 0.75
		200	$ 0.30
		500	$ 0.29
		1000	$ 0.28

Description

General part information

PRPC021 Series

Connector Header Through Hole, Right Angle 21 position 0.100" (2.54mm)
