901-19-1-28-2-B-0

Active

Wakefield-Vette

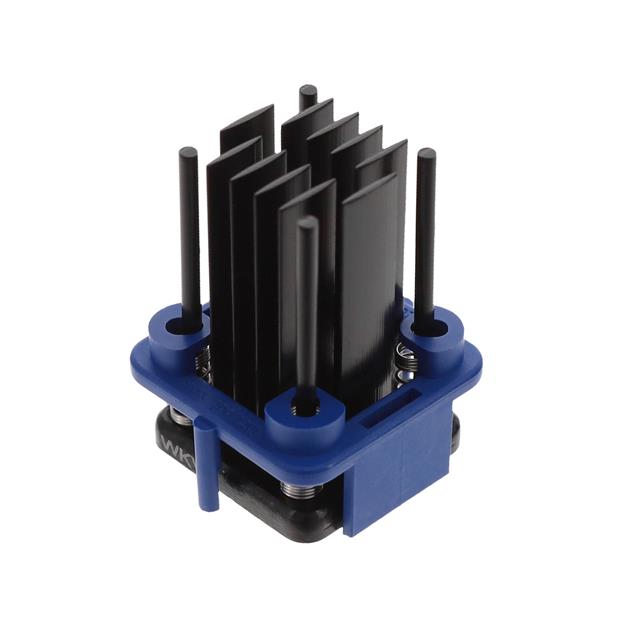

HEAT SINK ELLIP FIN 19X19MM CLIP

Search across all available documentation for this part.

Active

Wakefield-Vette

HEAT SINK ELLIP FIN 19X19MM CLIP

Technical Specifications

Parameters and characteristics for this part

Specification	901-19-1-28-2-B-0

Attachment Method	Push Pin
Fin Height [z]	27.6 mm
Fin Height [z]	1.087 in
Length	0.748 in
Length	19 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	4.91 °C/W, 200 LFM
Thermal Resistance @ Natural	10.3 °C/W
Type	Top Mount
Width [y]	0.748 in
Width [y]	19 mm

Part	Width [y]	Width [y]	Thermal Resistance @ Forced Air Flow	Attachment Method	Material Finish	Material	Fin Height [z]	Fin Height [z]	Shape	Thermal Resistance @ Natural	Package Cooled	Type	Length	Length
Wakefield-Vette 901-19-2-21-2-B-0	0.748 in	19 mm	5.66 °C/W 200 LFM	Push Pin	Black Anodized	Aluminum	20.6 mm	0.811 in	Pin Fins Square	10.7 °C/W	BGA	Top Mount	0.748 in	19 mm
Wakefield-Vette 901-19-1-28-2-B-0	0.748 in	19 mm	4.91 °C/W 200 LFM	Push Pin	Black Anodized	Aluminum	27.6 mm	1.087 in	Pin Fins Square	10.3 °C/W	BGA	Top Mount	0.748 in	19 mm
Wakefield-Vette 901-19-1-15-2-B-0	0.748 in	19 mm	6.3 °C/W	Push Pin	Black Anodized	Aluminum	14.6 mm	0.575 in	Pin Fins Square	12.1 °C/W	BGA	Top Mount	0.748 in	19 mm
Wakefield-Vette 901-19-2-12-2-B-0	0.748 in	19 mm	6.6 °C/W 200 LFM	Push Pin	Black Anodized	Aluminum			Pin Fins Square	12.7 °C/W	BGA	Top Mount	0.748 in	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Top Mount
