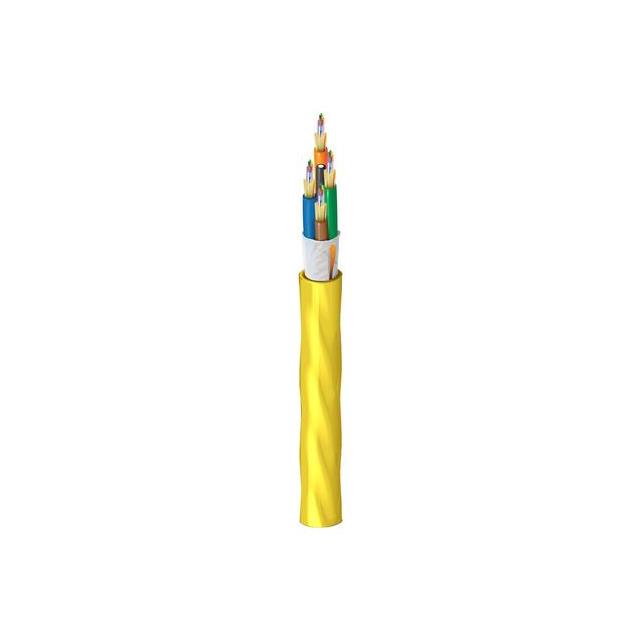

FISD144RK

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FISD144RK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Rip Cord
Features	144 Fibers
Jacket (Insulation) Diameter [diameter]	1.076 in
Jacket (Insulation) Diameter [diameter]	27.33 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Singlemode

Part	Features	Features	Type	Style	Cladding Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Core Diameter [diameter]	Jacket (Insulation) Material	Ratings	Jacket Color	Tensile Strength	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. FISD144RK	Rip Cord	144 Fibers	Singlemode	Multiple Fibers	125 µm	-20 C	70 °C	9 µm	Poly-Vinyl Chloride (PVC)	OFNR	Yellow	40.8 kg	1.076 in	27.33 mm
Belden Inc. FISD144AK	Armored	144 Fibers	Singlemode	Multiple Fibers	125 µm	0 °C	70 °C	9 µm	Poly-Vinyl Chloride (PVC)	OFCP	Yellow	40.8 kg	1.425 "	36.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 6.39

General part information

Fiber Optic Cable Yellow Singlemode 125µm
