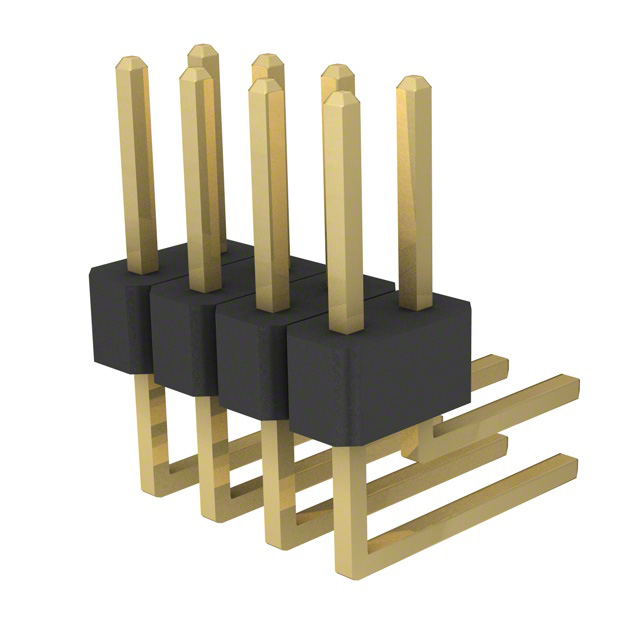

PRPC004DBBN-M71RC
UnknownSullins Connector Solutions
CONN HEADER R/A 8POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC004DBBN-M71RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post | 0.22 in |
| Contact Length - Post | 5.58 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.197 in |
| Insulation Height | 5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC004 Series
| Part | Connector Type | Contact Finish Thickness - Mating | Contact Material | Number of Rows | Insulation Material | Mounting Type | Style | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Contact Shape | Contact Finish - Mating | Number of Positions | Contact Finish Thickness - Post | Contact Type | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Current Rating (Amps) | Overall Contact Length | Overall Contact Length | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish - Post | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Overall Contact Length | Contact Length - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 2 | Polybutylene Terephthalate (PBT) | Through Hole | Board to Board Cable | UL94 V-0 | 0.12 in | 3.05 mm | Solder | 0.098 in | 2.5 mm | All | Square | Gold | 8 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 13.63 mm | 0.537 " | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | Gold | Black | 0.1 in | 2.54 mm | ||||||
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 1 | Polybutylene Terephthalate (PBT) | Through Hole Right Angle | Board to Board Cable | UL94 V-0 | 0.12 in | 3.05 mm | Solder | 0.098 in | 2.5 mm | All | Square | Gold | 4 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 0.318 " | 8.08 mm | Gold | Black | 0.1 in | 2.54 mm | ||||||||||
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 2 | Polybutylene Terephthalate (PBT) | Through Hole | Board to Board Cable | UL94 V-0 | Solder | 0.098 in | 2.5 mm | All | Square | Gold | 8 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 16.17 mm | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | Gold | Black | 0.1 in | 2.54 mm | 0.22 in | 5.58 mm | 0.637 in | ||||||
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 1 | Polybutylene Terephthalate (PBT) | Through Hole Right Angle | Board to Board Cable | UL94 V-0 | 0.32 in | 8.13 mm | Solder | 0.098 in | 2.5 mm | All | Square | Gold | 4 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 0.23 in | Gold | Black | 0.1 in | 2.54 mm | 5.84 mm | ||||||||||
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 2 | Polybutylene Terephthalate (PBT) | Through Hole Right Angle | Board to Board Cable | UL94 V-0 | Solder | All | Square | Gold | 8 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 2.54 mm | 0.1 in | 0.23 in | Gold | Black | 0.1 in | 2.54 mm | 0.22 in | 5.58 mm | 5.84 mm | 0.197 in | 5 mm | ||||||||
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 1 | Polybutylene Terephthalate (PBT) | Through Hole | Board to Board Cable | UL94 V-0 | 0.12 in | 3.05 mm | Solder | 0.098 in | 2.5 mm | All | Square | Gold | 4 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 11.39 mm | 0.23 in | Gold | Black | 0.1 in | 2.54 mm | 0.448 in | 5.84 mm | ||||||||
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 1 | Polybutylene Terephthalate (PBT) | Through Hole | Board to Board Cable | UL94 V-0 | 0.32 in | 8.13 mm | Solder | 0.098 in | 2.5 mm | All | Square | Gold | 4 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 16.47 mm | 0.23 in | Gold | Black | 0.1 in | 2.54 mm | 0.648 in | 5.84 mm | ||||||||
Sullins Connector Solutions | Breakaway Header | Flash | Brass | 2 | Polybutylene Terephthalate (PBT) | Through Hole | Board to Board Cable | UL94 V-0 | Solder | 0.098 in | 2.5 mm | All | Square | Gold | 8 | Flash | Male Pin | Unshrouded | -40 °C | 105 ░C | Push-Pull | 3 A | 14.18 mm | 2.54 mm | 0.1 in | 0.23 in | Gold | Black | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | 0.558 in | 5.84 mm |
