R223062000

Active

Radiall USA, Inc.

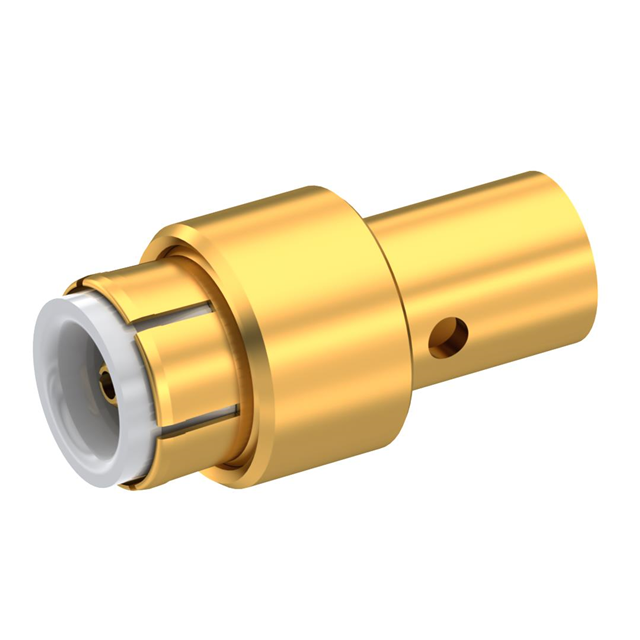

MMBX / STRAIGHT PLUG SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMBX / STRAIGHT PLUG SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R223062000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Body Material	Contact Termination	Center Contact Plating	Connector Style	Connector Type	Fastening Type	Frequency - Max [Max]	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Impedance	Mounting Type	Housing Color	Number of Ports	Dielectric Material	Body Finish	Voltage Rating	Shield Termination
Radiall USA, Inc. R223062000	Brass	Solder	Gold	MMBX	Male Pin Plug	Snap-On	12.4 GHz	RG-405 (.085" Semi Rigid)	155 °C	-55 °C	Beryllium Copper	50 Ohms	Free Hanging (In-Line)	Gold	1	Polytetrafluoroethylene (PTFE)	Gold	250 VDC	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMBX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
