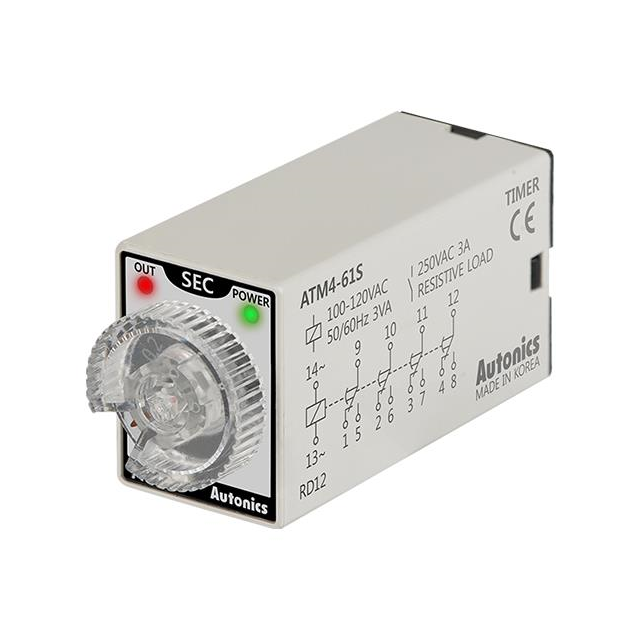

ATM4-61S

Active

AUTONICS

RELAY TIME DELAY 1SEC 3A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 1SEC 3A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply	Delay Time [Min]	Delay Time [Max]	Circuit	Circuit	Timing Initiate Method	Timing Adjustment Method	Contact Rating @ Voltage	Relay Type	Function	Termination Style	Mounting Type
AUTONICS ATM4-65S	110 VAC/DC	0.5 Sec	5 Sec	4 Form C	4PDT	Input Voltage	Hand Dial	3 A 24 VDC 250 VAC	Mechanical Relay	On-Delay	Plug In 14 Pin	Socketable
AUTONICS ATM4-63H	110 VAC/DC			4 Form C	4PDT	Input Voltage	Hand Dial	3 A 24 VDC 250 VAC	Mechanical Relay	On-Delay	Plug In 14 Pin	Socketable
AUTONICS ATM4-660M	110 VAC/DC	6 Min	60 Min	4 Form C	4PDT	Input Voltage	Hand Dial	3 A 24 VDC 250 VAC	Mechanical Relay	On-Delay	Plug In 14 Pin	Socketable
AUTONICS ATM4-61S	110 VAC/DC	0.1 Sec	1 Sec	4 Form C	4PDT	Input Voltage	Hand Dial	3 A 24 VDC 250 VAC	Mechanical Relay	On-Delay	Plug In 14 Pin	Socketable
AUTONICS ATM4-610S	110 VAC/DC	1 Sec	10 s	4 Form C	4PDT	Input Voltage	Hand Dial	3 A 24 VDC 250 VAC	Mechanical Relay	On-Delay	Plug In 14 Pin	Socketable
AUTONICS ATM4-660S	110 VAC/DC	6 Sec	60 Sec	4 Form C	4PDT	Input Voltage	Hand Dial	3 A 24 VDC 250 VAC	Mechanical Relay	On-Delay	Plug In 14 Pin	Socketable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.00

General part information

On-Delay Time Delay Relay 4PDT (4 Form C) 0.1 Sec ~ 1 Sec Delay 3A @ 250VAC/24VDC Socketable

Technical documentation and resources
