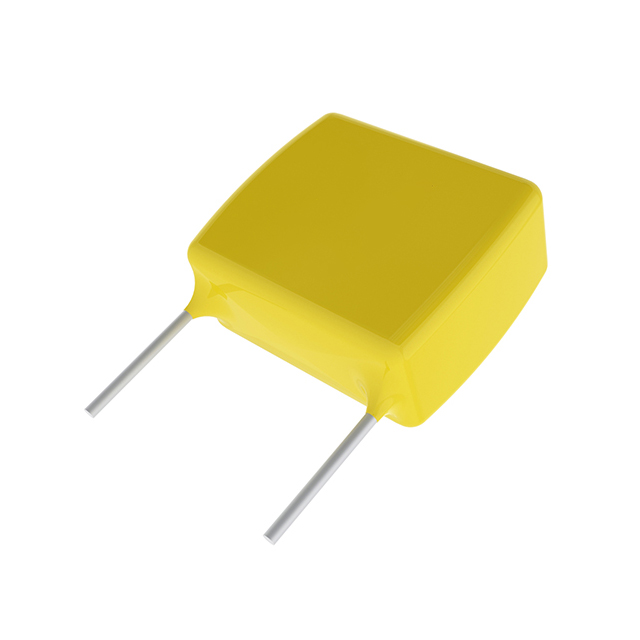

C326C155M5N5TA9170

Active

KEMET

CAP CER 1.5UF 50V X8L RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C326C155M5N5TA9170 Spec

C326C155M5N5TA9170

Active

KEMET

CAP CER 1.5UF 50V X8L RADIAL

Deep-Dive with AI

DocumentsDatasheet C326C155M5N5TA9170 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C326C155M5N5TA9170

Applications	Automotive
Capacitance	1.5 µF
Features	High Temperature
Height - Seated (Max) [Max]	0.3 in
Height - Seated (Max) [Max]	7.62 mm
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.2 in
Size / Dimension [x]	5.08 mm
Size / Dimension [y]	0.125 in
Size / Dimension [y]	3.18 mm
Temperature Coefficient	X8L
Tolerance	20 %
Voltage - Rated	50 VDC

C326C Series

...

Part	Tolerance	Mounting Type	Capacitance	Package / Case	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Lead Style	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Features	Ratings
KEMET C326C479D3G5TA7301	0.5 pF	Through Hole	4.7 pF	Radial	25 VDC	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL
KEMET C326C104K5R5TA	10 %	Through Hole	100000 pF	Radial	50 VDC	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	X7R	0.3 in	7.62 mm	0.1 in	2.54 mm
KEMET C326C300GAG5TA	2 %	Through Hole	30 pF	Radial	250 V	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL
KEMET C326C752F2G5TA	1 %	Through Hole	7500 pF	Radial	200 V	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL
KEMET C326C155M5N5TA9170	20 %	Through Hole	1.5 µF	Radial	50 VDC	0.2 in	0.125 in	5.08 mm	3.18 mm	Automotive	Formed Leads - Kinked	-55 °C	150 °C	X8L	0.3 in	7.62 mm	0.1 in	2.54 mm	High Temperature	AEC-Q200
KEMET C326C119C3G5TA7301	0.25 pF	Through Hole	1.1 pF	Radial	25 VDC	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL
KEMET C326C270FAG5TA	1 %	Through Hole	27 pF	Radial	250 V	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL
KEMET C326C393K1G5TA7301	10 %	Through Hole	0.039 µF	Radial	100 V	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL
KEMET C326C620F3G5TA	1 %	Through Hole	62 pF	Radial	25 VDC	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL
KEMET C326C152F3G5TA	1 %	Through Hole	1500 pF	Radial	25 VDC	0.2 in	0.125 in	5.08 mm	3.18 mm	General Purpose	Formed Leads - Kinked	-55 °C	125 °C	C0G NP0	0.3 in	7.62 mm	0.1 in	2.54 mm	Low ESL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.26

Description

General part information

C326C Series

1.5 µF ±20% 50V Ceramic Capacitor X8L Radial

Documents

Technical documentation and resources

Datasheet

C326C155M5N5TA9170 Spec

Datasheet
