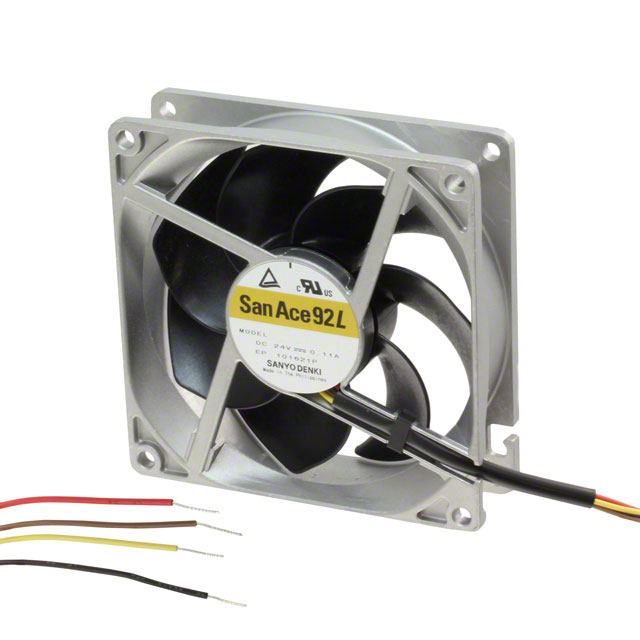

9LG0924P1F001

Active

Sanyo Denki America Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9LG0924P1F001

Air Flow	2.87 m³/min
Air Flow	102.4 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	180000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12 W
RPM	7000 RPM
Static Pressure	1.05 in H2O
Static Pressure	261.5 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	0.604 lb
Weight	273.97 g
Width [y]	38 mm

Part	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Noise	Material - Blade	Static Pressure	Static Pressure	Termination	Current Rating (Amps)	Material - Frame	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Weight	Weight	Lifetime @ Temp.	Voltage - Rated	Features	RPM	Width [y]
Sanyo Denki America Inc. 9LG0924P4S001	CSA TUV UL	2.64 W	-20 °C	70 °C	-20 C	70 °C	Ball	37 dB	Plastic	0.25 in H2O	62.3 Pa	4 Wire Leads	110 mA	Aluminum	1.67 m³/min	59.7 CFM	21.6 VDC	26.4 VDC	Tubeaxial	150.14 g	0.331 lb	180000 Hrs	24 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	3850 RPM	25 mm
Sanyo Denki America Inc. 9LG0924P1F001	CSA TUV UL	12 W	-20 °C	70 °C	-20 C	70 °C	Ball	55 dB	Plastic	1.05 in H2O	261.5 Pa	4 Wire Leads	0.5 A	Aluminum	2.87 m³/min	102.4 CFM			Tubeaxial	273.97 g	0.604 lb	180000 Hrs	24 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7000 RPM	38 mm
Sanyo Denki America Inc. 9LG0924P4J001	CSA TUV UL	5.04 W	-20 °C	70 °C	-20 C	70 °C	Ball	44.2 dB(A)	Plastic	0.42 in H2O	104.6 Pa	4 Wire Leads	0.21 A	Aluminum	2.18 m³/min	77.7 CFM	21.6 VDC	26.4 VDC	Tubeaxial	150.14 g	0.331 lb	180000 Hrs	24 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	5000 RPM	25 mm
Sanyo Denki America Inc. 9LG0924P4G001	CSA TUV UL	3.6 W	-20 °C	70 °C	-20 C	70 °C	Ball	40 dB(A)	Plastic	0.33 in H2O	82.2 Pa	4 Wire Leads	150 mA	Aluminum			21.6 VDC	26.4 VDC	Tubeaxial	150.14 g	0.331 lb	180000 Hrs	24 VDC	PWM Control Speed Sensor (Tach)	4400 RPM	25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 102.4 CFM (2.87m³/min) 4 Wire Leads
