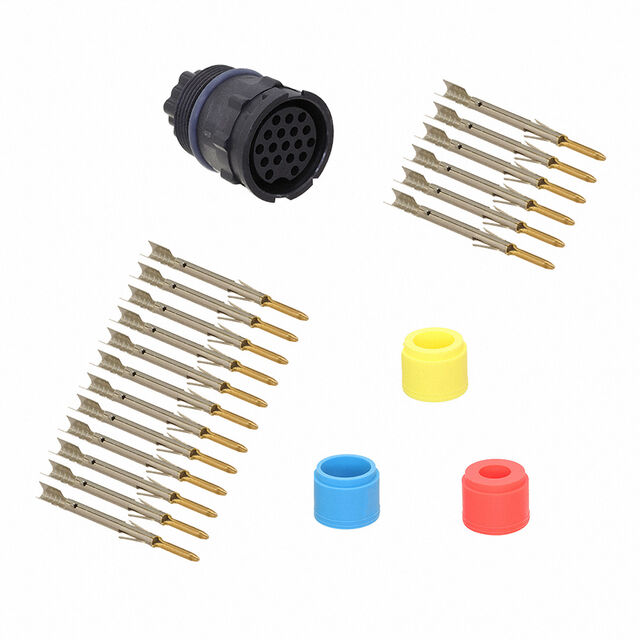

ADD-18BMFC-LL7AP0
ActiveAmphenol LTW
CONN RCPT FMALE 18POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADD-18BMFC-LL7AP0
ActiveAmphenol LTW
CONN RCPT FMALE 18POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADD-18BMFC-LL7AP0 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | D |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.23 | |
| 10 | $ 6.51 | |||
| 25 | $ 6.13 | |||
| 50 | $ 5.98 | |||
| 100 | $ 5.82 | |||
| 250 | $ 5.54 | |||
Description
General part information
ADD-18BMFC Series
18 (Data) Position Circular Connector Receptacle, Female Sockets Crimp
