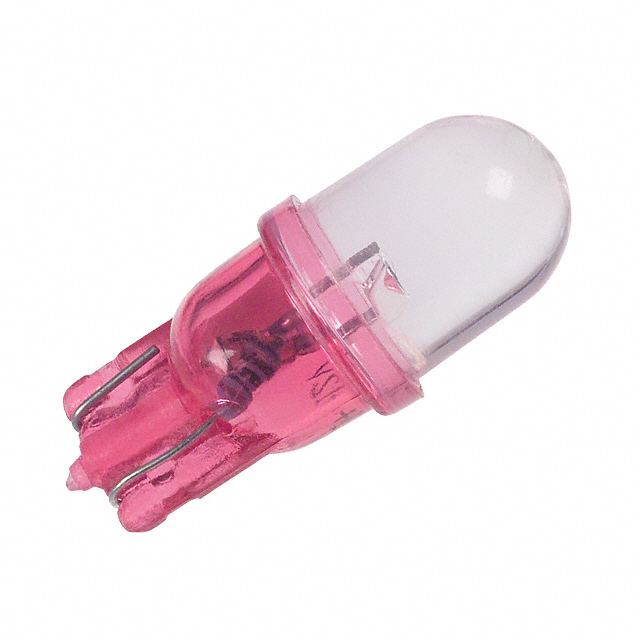

SSP-01TWB6UWB12

Active

Lumex Opto/Components Inc.

LED MINI WEDGE 626NM RED WTR CLR

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED MINI WEDGE 626NM RED WTR CLR

Technical Specifications

Parameters and characteristics for this part

Specification	SSP-01TWB6UWB12

Applications	Indicator Lights, Incandescent Replacements
Base Type	Wedge
Color	Red
Configuration	Single
Millicandela Rating	8000 mcd
Size / Dimension [diameter]	0.394 in
Size / Dimension [diameter]	10 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.181 "
Voltage - Forward (Vf) (Typ)	12 V
Wavelength	626 nm

Part	Voltage - Forward (Vf) (Typ)	Wavelength	Applications	Color	Configuration	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Millicandela Rating	Base Type
Lumex Opto/Components Inc. SSP-01TWB2UPW12	12 V	525 nm	Incandescent Replacements Indicator Lights	Green	Single	30 mm	0.394 in	1.181 "	10 mm	2800 mcd	Wedge
Lumex Opto/Components Inc. SSP-01TWB9W12	12 V		Incandescent Replacements Indicator Lights	White	Single	30 mm	0.394 in	1.181 "	10 mm	3300 mcd	Wedge
Lumex Opto/Components Inc. SSP-01TWB6UWB12	12 V	626 nm	Incandescent Replacements Indicator Lights	Red	Single	30 mm	0.394 in	1.181 "	10 mm	8000 mcd	Wedge
Lumex Opto/Components Inc. SSP-01TWB9WB12	12 V		Incandescent Replacements Indicator Lights	White	Single	30 mm	0.394 in	1.181 "	10 mm	11000 mcd	Wedge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lamp Replacement Red Wedge 12V 0.394" Dia x 1.181" H (10.00mm x 30.00mm)

Technical documentation and resources

No documents available
