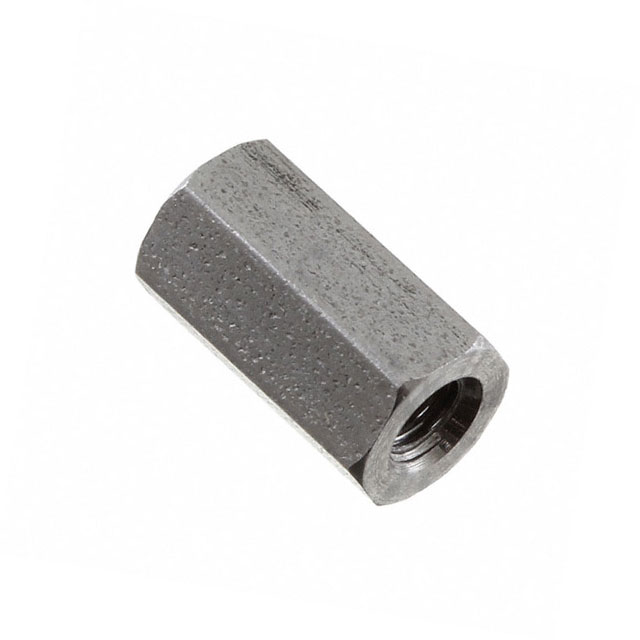

M1256-2545-SS-20

Active

RAF Electronic Hardware

4.5MM HEX X 9MM X M2.5 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

4.5MM HEX X 9MM X M2.5 THD

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Between Board Height	Between Board Height	Type	Screw, Thread Size	Color	Gender	Threaded/Unthreaded	Material	Length - Overall [x]	Length - Overall [x]	Plating
RAF Electronic Hardware M1256-3005-B-28	4.5 mm	0.177 in	0.354 in	9 mm	Hex Standoff	#2-56	Yellow	Female	Threaded	Brass	0.354 in	9 mm	Chromate Zinc
RAF Electronic Hardware M1256-3005-SS			0.354 in	9 mm	Hex Standoff	M3x0.5		Female	Threaded	Stainless Steel	0.354 in	9 mm
RAF Electronic Hardware M1256-2545-S-12	4.5 mm	0.177 in	0.354 in	9 mm	Hex Standoff	#2-56	Clear	Female	Threaded		0.354 in	9 mm	Chromate Zinc
RAF Electronic Hardware M1256-2545-SS-20	4.5 mm	0.177 in	0.354 in	9 mm	Hex Standoff	#2-56		Female	Threaded	Stainless Steel	0.354 in	9 mm	Passivated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded #2-56 Stainless Steel 0.354" (9.00mm)

Technical documentation and resources

No documents available
