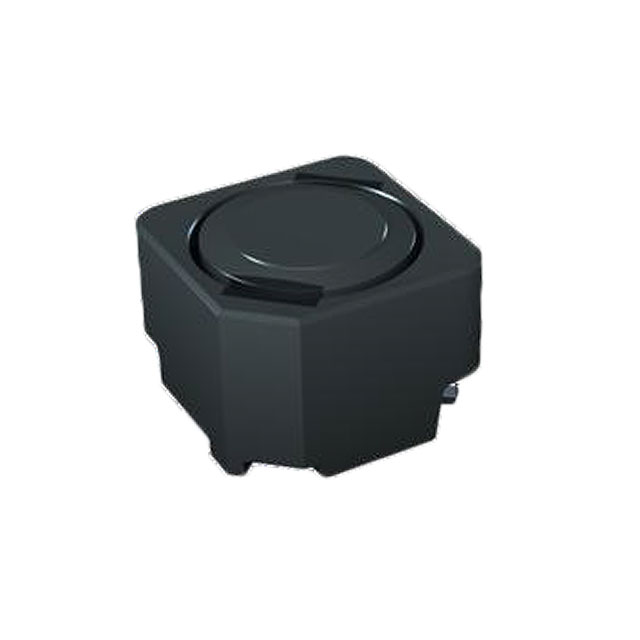

MBH7045C-221MA=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 220UH 650MA 624MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MBH7045C-221MA=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 220UH 650MA 624MOHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MBH7045C-221MA=P3

Current - Saturation (Isat)	450 mA
Current Rating (Amps)	650 mA
DC Resistance (DCR) [Max]	624 mOhm
Height - Seated (Max) [Max] [z]	0.189 "
Height - Seated (Max) [Max] [z]	4.8 mm
Inductance	220 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	7.2 mm
Size / Dimension [y]	0.283 "
Tolerance	20 %
Type	Wirewound, Drum Core

MBH7045C Series

Part	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material - Core	Package / Case	Inductance Frequency - Test	Current - Saturation (Isat)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Mounting Type	Current Rating (Amps)	Tolerance	DC Resistance (DCR)	Inductance	Shielding	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. MBH7045C-680MA=P3	AEC-Q200	7.2 mm	0.283 "	0.283 in	7.2 mm	Ferrite	Nonstandard	100 kHz	780 mA	0.189 "	4.8 mm	Drum Core Wirewound	Surface Mount	1.1 A	20 %	210 mOhm	68 µH	Shielded
Murata Power Solutions Inc. MBH7045C-4R7NA=P3	AEC-Q200	7.2 mm	0.283 "	0.283 in	7.2 mm	Ferrite	Nonstandard	100 kHz	2.7 A	0.189 "	4.8 mm	Drum Core Wirewound	Surface Mount	3.2 A	30 %		4.7 ÁH	Shielded	27.6 mOhm
Murata Power Solutions Inc. MBH7045C-470MA=P3	AEC-Q200	7.2 mm	0.283 "	0.283 in	7.2 mm	Ferrite	Nonstandard	100 kHz	940 mA	0.189 "	4.8 mm	Drum Core Wirewound	Surface Mount	1.3 A	20 %		47 µH	Shielded	150 mOhm
Murata Power Solutions Inc. MBH7045C-220MB=P3	AEC-Q200	7.2 mm	0.283 "	0.283 in	7.2 mm	Ferrite	Nonstandard	100 kHz	1.8 A	0.189 "	4.8 mm	Drum Core Wirewound	Surface Mount	1.8 A	20 %	84 mOhm	22 µH	Shielded
Murata Power Solutions Inc. MBH7045C-100MB=P3
Murata Power Solutions Inc. MBH7045C-6R8NA=P3	AEC-Q200	7.2 mm	0.283 "	0.283 in	7.2 mm	Ferrite	Nonstandard	100 kHz	2.5 A	0.189 "	4.8 mm	Drum Core Wirewound	Surface Mount	2.7 A	30 %		6.8 µH	Shielded	33.6 mOhm
Murata Power Solutions Inc. MBH7045C-221MA=P3	AEC-Q200	7.2 mm	0.283 "	0.283 in	7.2 mm	Ferrite	Nonstandard	100 kHz	450 mA	0.189 "	4.8 mm	Drum Core Wirewound	Surface Mount	650 mA	20 %		220 µH	Shielded	624 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MBH7045C Series

220 µH Shielded Drum Core, Wirewound Inductor 650 mA 624mOhm Max Nonstandard
