MXL8-PW50-0000

Obsolete

Lumileds

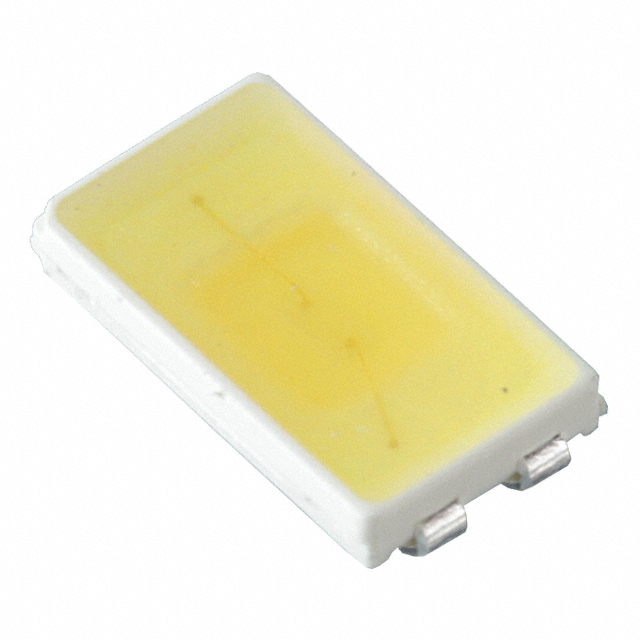

LED LUXEON COOL WHITE 5000K 4SMD

Search across all available documentation for this part.

Obsolete

Lumileds

LED LUXEON COOL WHITE 5000K 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	MXL8-PW50-0000

CCT (K)	5000 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	150 mA
Current - Test	100 mA
Flux @ 25°C, Current - Test	35 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	113 lm/W
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Lead Exposed Pad
Size / Dimension [x]	0.22 in
Size / Dimension [x]	5.6 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Thermal Resistance of Package [diameter]	24 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.1 V

Part	Current - Max [Max]	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle	CRI (Color Rendering Index)	Current - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Color	Package / Case
Lumileds MXL8-PW50-0000	150 mA	35 lm	0.035 "	0.9 mm	113 lm/W	24 °C/W	3.1 V	120 °	80	100 mA	Surface Mount	0.22 in	3 mm	0.118 in	5.6 mm	5000 K	Cool White	4-SMD Flat Lead Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting LUXEON 5630 White, Cool 5000K 3.1V 100mA 120° 4-SMD, Flat Lead Exposed Pad
