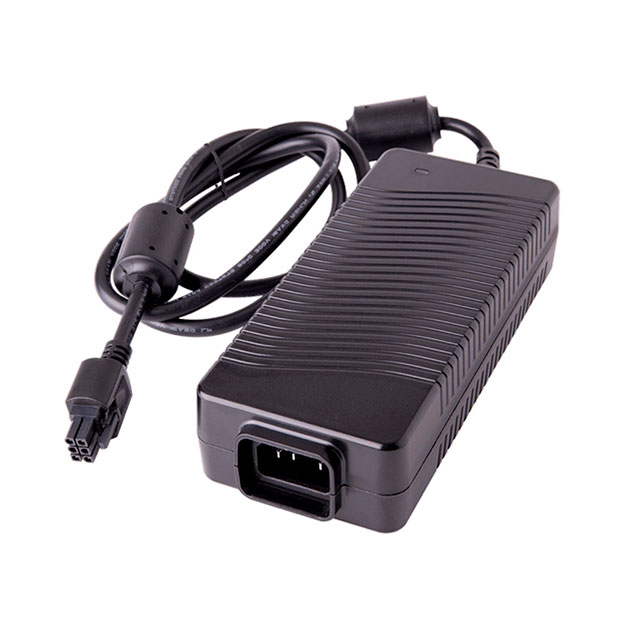

GE150A2451F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GE150A2451F01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GE150A2451F01 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | UL, CE, cULus |
| Cord Length | 45.9 in |
| Cord Length | 1.17 m |
| Current - Output (Max) [Max] | 6.25 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Rectangular, 6 Position |
| Power (Watts) | 150 W |
| Region Utilized | International |
| Size / Dimension [x] | 164.1 mm |
| Size / Dimension [x] | 6.46 " |
| Size / Dimension [y] | 2.83 in |
| Size / Dimension [y] | 71.9 mm |
| Size / Dimension [z] | 37.1 mm |
| Size / Dimension [z] | 1.46 " |
| Standard Number | 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.28 | |
| 5 | $ 110.60 | |||
| 20 | $ 106.91 | |||
| 40 | $ 101.38 | |||
| 60 | $ 99.54 | |||
| 100 | $ 98.06 | |||
Description
General part information
GE150A2451 Series
24V 150 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
