AP6M222-R

Active

IDEC

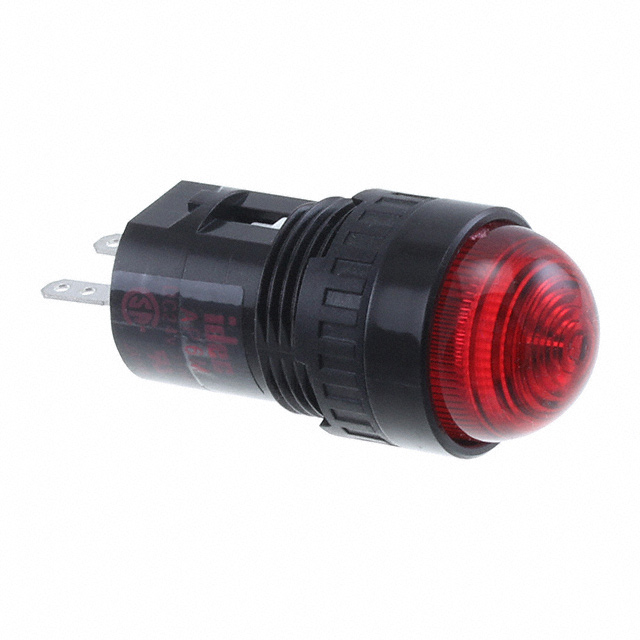

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 VDC, 16 MM, 11 MA, IP65

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

AP6M222-R

Active

IDEC

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 VDC, 16 MM, 11 MA, IP65

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP6M222-R

Ingress Protection	IP65
Lamp Color	Red
Lens Size [diameter]	15.6 mm
Lens Style	Round with Domed Top
Panel Cutout Dimensions	0.64 in
Panel Cutout Dimensions	16.2 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Voltage	24 V

AP6M222 Series

Part	Type	Panel Cutout Shape	Lamp Color	Ratings	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Ingress Protection	Lens Size [diameter]	Voltage
IDEC AP6M222-R	LED	Round	Red	DC	Solder Lug	0.64 in	16.2 mm	Round with Domed Top	IP65	15.6 mm	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.55
		5	$ 10.96
		10	$ 10.34
		25	$ 9.56
		50	$ 9.02
		100	$ 8.50
Newark	Each	1	$ 10.96
		5	$ 10.63
		10	$ 10.08
		25	$ 9.83
		50	$ 9.57
		100	$ 9.32

Description

General part information

AP6M222 Series

The AP6M222-R is a red miniature Pilot Light with dome lens and space saving miniature style. It features long service life, low maintenance and built-in current-limiting resistor. The light comes with 10MΩ minimum (500VDC megger) insulation resistance between live and dead parts.
