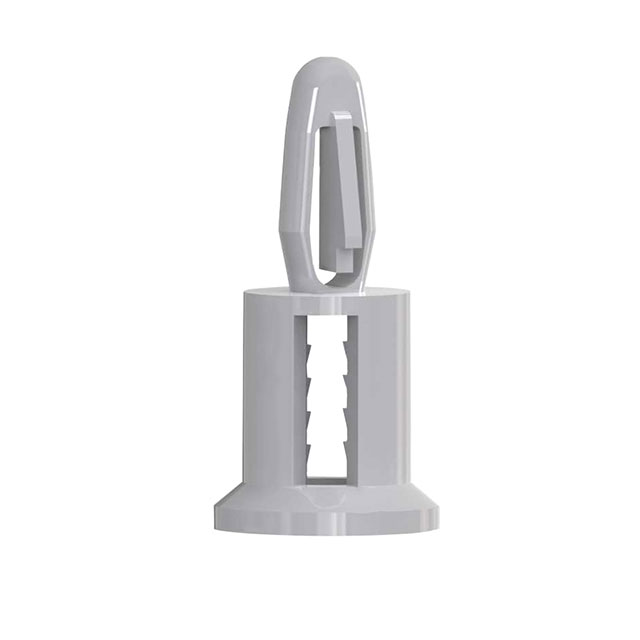

SFCBS-M4-14M-01
ActiveEssentra Access Solutions
CBS STUD-FIT 14MM STUD FOR 12MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFCBS-M4-14M-01
ActiveEssentra Access Solutions
CBS STUD-FIT 14MM STUD FOR 12MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFCBS-M4-14M-01 |
|---|---|
| Between Board Height | 0.551 in |
| Between Board Height | 14 mm |
| Features | M4 Thread |
| Holding Type | Snap Lock |
| Length - Overall [x] | 24.21 mm |
| Length - Overall [x] | 0.953 in |
| Material | Nylon |
| Mounting Type | Screw Mount |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.55 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.34 | |||
| 3000 | $ 0.31 | |||
Description
General part information
SFCBS Series
Board Support Snap Lock / Screw Mount Nylon 0.551" (14.00mm)
