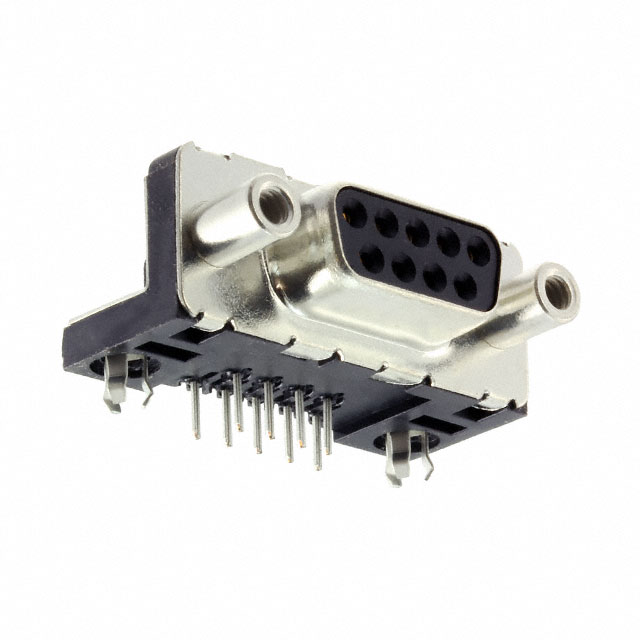

LD09S33E4GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 9POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD09S33E4GV00LF

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Contact Material	Number of Positions	Connector Type	Shell Material, Finish	Termination	Contact Type	Material Flammability Rating	Color	Contact Finish Thickness	Backset Spacing	Backset Spacing	Contact Finish	Current Rating (Amps)	Mounting Type	Connector Style	Dielectric Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (FCI) LD09S33E4GV00LF	Female Screwlock (4-40) Mating Side	DE E	1	2	Copper Alloy	9	Receptacle Female Sockets	Steel Tin-Nickel Plated	Solder	Signal	UL94 V-0	Black	Flash	8.08 mm	0.318 "	Gold	5 A	Through Hole Right Angle	D-Sub	Thermoplastic	250 VDC	105 ░C	-55 °C
