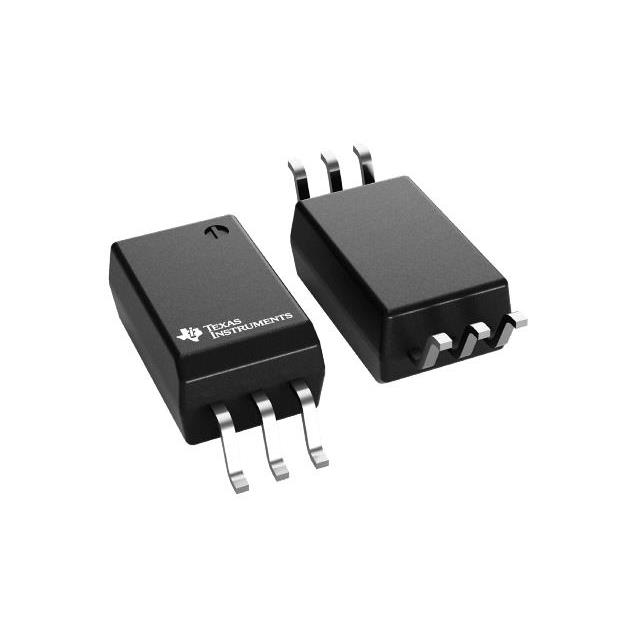

UCC23113DWYR
Active4A/5A SINGLE-CHANNEL OPTO-COMPATIBLE ISOLATED GATE DRIVER WITH FUNCTIONAL ISOLATION (1.2KVRMS)
Deep-Dive with AI
Search across all available documentation for this part.
UCC23113DWYR
Active4A/5A SINGLE-CHANNEL OPTO-COMPATIBLE ISOLATED GATE DRIVER WITH FUNCTIONAL ISOLATION (1.2KVRMS)
Technical Specifications
Parameters and characteristics for this part
| Specification | UCC23113DWYR |
|---|---|
| Common Mode Transient Immunity (Min) [Min] | 100 V/ns |
| Current - DC Forward (If) (Max) [Max] | 1 A |
| Current - Output High, Low [custom] | 5 A |
| Current - Output High, Low [custom] | 5 A |
| Current - Peak Output | 1 A |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Propagation Delay tpLH / tpHL (Max) [Max] [custom] | 105 ns |
| Propagation Delay tpLH / tpHL (Max) [Max] [custom] | 105 ns |
| Pulse Width Distortion (Max) [Max] | 35 ns |
| Rise / Fall Time (Typ) | 28 ns, 25 ns |
| Supplier Device Package | 6-SOIC |
| Technology | Optical Coupling |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output Supply [Max] | 30 V |
| Voltage - Output Supply [Min] | 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.10 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 1.10 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| Tape & Reel (TR) | 850 | $ 0.63 | ||
| 1700 | $ 0.50 | |||
| 2550 | $ 0.47 | |||
| 5950 | $ 0.44 | |||
| 21250 | $ 0.43 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.54 | |
| 100 | $ 0.42 | |||
| 250 | $ 0.31 | |||
| 1000 | $ 0.22 | |||
Description
General part information
UCC23113 Series
The UCC23113 opto-compatible, single-channel, isolated gate driver for IGBTs, MOSFETs and SiC MOSFETs, with 5-A source and 5-A sink peak output current and 1.5-kV DC functional isolation. The high supply voltage range of 30 V allows the use of bipolar supplies to effectively drive IGBTs and SiC power FETs. The UCC23113 can drive both low-side and high-side power FETs.
Key features and characteristics bring significant performance and reliability upgrades over standard opto-coupler based gate drivers while maintaining pin-to-pin compatibility in both schematic and layout design. Performance highlights include high common-mode transient immunity (CMTI), low propagation delay, and small pulse width distortion. Tight process control results in small part-to-part skew. The input stage is an emulated diode (e-diode) which means long term reliability and excellent aging characteristics compared to traditional LEDs found in optocoupler gate drivers. It is offered in a stretched SO6 package with >8.5-mm creepage and clearance, and a mold compound from material group I which has a comparative tracking index (CTI) > 600 V.
The high performance and reliability of the UCC23113 makes it ideal for use in all types of motor drives, solar inverters, industrial power supplies, and appliances. The higher operating temperature opens up opportunities for applications not previously able to be supported by traditional optocouplers.
