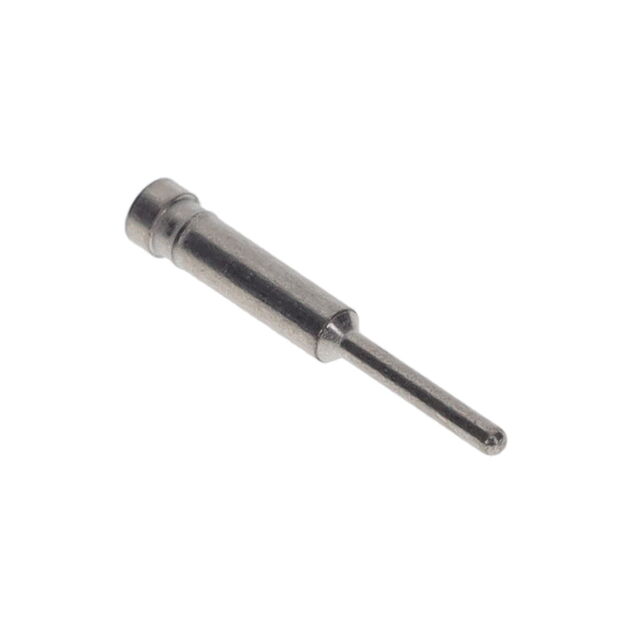

8827-0-15-80-16-14-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	8827-0-15-80-16-14-04-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.49 in
Length - Overall [x]	12.45 mm
Mounting Hole Diameter [diameter]	0.061 "
Mounting Hole Diameter [diameter]	1.55 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.23 in
Socket Depth	5.84 mm
Tail Diameter	0.03 in
Tail Diameter	0.76 mm
Tail Type	Standard Tail
Termination	Press-Fit

Part	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Tail Diameter	Tail Diameter	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]
Mill-Max Manufacturing Corp. 8827-0-15-15-16-27-04-0	Press-Fit	1.83 mm	0.072 in	0.49 in	12.45 mm	Gold	0.23 in	5.84 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	0.061 "	1.55 mm	0.051 in	1.3 mm	0.76 Ám	30 Áin	-55 °C	125 °C	Standard Tail	0.03 in	0.76 mm	0.64 mm	0.025 in
Mill-Max Manufacturing Corp. 8827-0-15-80-16-27-04-0	Press-Fit	1.83 mm	0.072 in	0.49 in	12.45 mm	Gold	0.23 in	5.84 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	0.061 "	1.55 mm	0.051 in	1.3 mm	0.76 Ám	30 Áin	-55 °C	125 °C	Standard Tail	0.03 in	0.76 mm	0.64 mm	0.025 in
Mill-Max Manufacturing Corp. 8827-0-15-80-16-14-04-0	Press-Fit	1.83 mm	0.072 in	0.49 in	12.45 mm	Gold	0.23 in	5.84 mm	0.86 mm	0.034 "	0.56 mm	0.022 "	Beryllium Copper	0.061 "	1.55 mm	0.051 in	1.3 mm	0.25 Ám	10 Áin	-55 °C	125 °C	Standard Tail	0.03 in	0.76 mm	0.64 mm	0.025 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) Standard Tail Press-Fit
