MC03FA40-TE16L
ActiveKyocera AVX
RECTIFIER, 400V, 4.71A, NSMC-FL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
MC03FA40-TE16L
ActiveKyocera AVX
RECTIFIER, 400V, 4.71A, NSMC-FL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MC03FA40-TE16L |
|---|---|
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SMC, DO-214AB |
| Reverse Recovery Time (trr) | 30 ns |
| Speed | 200 mA, 500 ns |

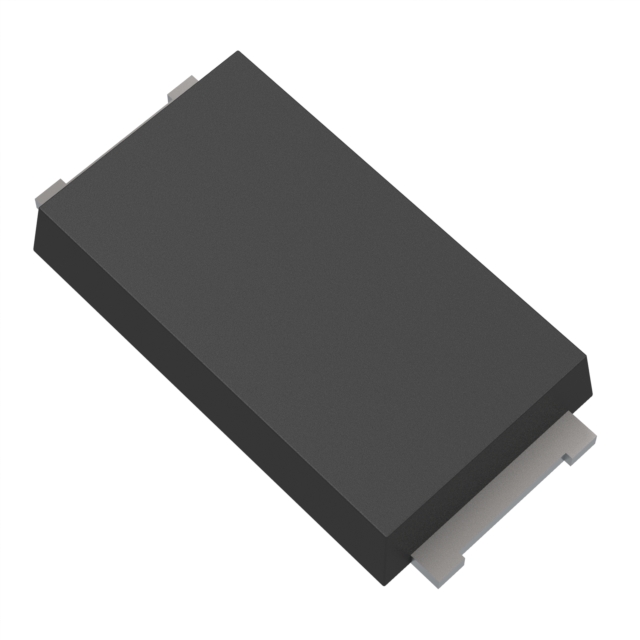

| Supplier Device Package | nSMC_FL |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 0.78 | |||
| 100 | $ 0.51 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 1.24 | ||
| 10 | $ 0.78 | |||
| 100 | $ 0.51 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 3000 | $ 0.32 | ||
| 6000 | $ 0.29 | |||
| 9000 | $ 0.28 | |||
| 15000 | $ 0.27 | |||
| 21000 | $ 0.26 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.07 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.87 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.59 | |||
Description
General part information
MC03 Series
Diode 400 V 3A Surface Mount nSMC_FL
