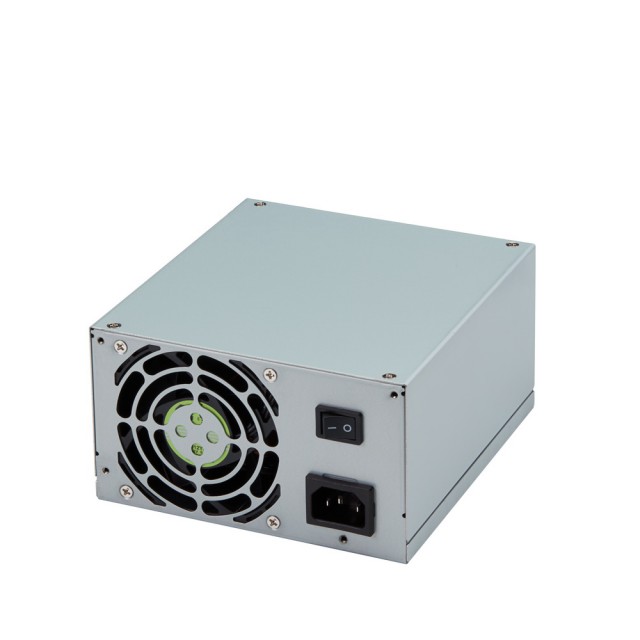

FSP600-90MPB
ActiveFSP Technology Inc.
AC/DC CNVT 3.3V 5V 4X12V 1000W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSP600-90MPB
ActiveFSP Technology Inc.
AC/DC CNVT 3.3V 5V 4X12V 1000W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP600-90MPB |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, FCC, CE, VCCI, cURus |
| Current - Output 1 | 24 A |
| Current - Output 2 | 24 A |
| Current - Output 3 | 16 A |
| Current - Output 4 | 16 A |
| Current - Output 5 | 16 A |
| Current - Output 6 | 16 A |
| Efficiency | 85 % |
| Features | Standby Output, Universal Input, PFC |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 9 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 1 kW |
| Size / Dimension [x] | 165 mm |
| Size / Dimension [x] | 6.5 in |
| Size / Dimension [y] | 150 mm |
| Size / Dimension [y] | 5.91 in |
| Size / Dimension [z] | 3.39 " |
| Size / Dimension [z] | 86 mm |
| Standard Number | 60950-1, 60601-1 |
| Type | ATX |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | 12 V |
| Voltage - Output 5 | 12 V |
| Voltage - Output 6 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 342.86 | |
| 5 | $ 334.29 | |||
| 10 | $ 324.00 | |||
Description
General part information
FSP600 Series
ATX AC DC Converters 9 Output 3.3V 5V 12V 12V 90 ~ 264 VAC Input
