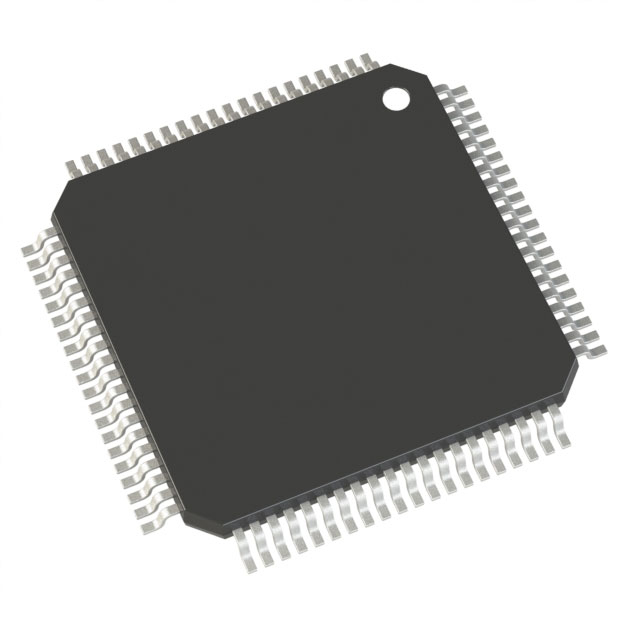

DSPIC33FJ64GS608T-50I/PT
Active16 BIT MCU/DSP 50MIPS 64KB FLASH 80 TQFP 12X12X1MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ64GS608T-50I/PT
Active16 BIT MCU/DSP 50MIPS 64KB FLASH 80 TQFP 12X12X1MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ64GS608T-50I/PT |
|---|---|
| Connectivity | IrDA, UART/USART, I2C, CANbus, SPI, LINbus |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | A/D 18x10b, D/A 1x10b |
| Mounting Type | Surface Mount |
| Number of I/O | 74 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 80-TQFP |
| Peripherals | WDT, QEI, Brown-out Detect/Reset, POR, DMA, PWM |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 9 K |
| Supplier Device Package | 80-TQFP (12x12) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.54 | |
| 25 | $ 7.84 | |||
| 100 | $ 7.09 | |||
| Digi-Reel® | 1 | $ 8.54 | ||
| 25 | $ 7.84 | |||
| 100 | $ 7.09 | |||
| Tape & Reel (TR) | 1200 | $ 7.09 | ||
| Microchip Direct | T/R | 1 | $ 8.54 | |
| 25 | $ 7.84 | |||
| 100 | $ 7.09 | |||
| 1000 | $ 6.53 | |||
| 5000 | $ 6.20 | |||
| Newark | Each (Supplied on Full Reel) | 100 | $ 7.31 | |
Description
General part information
dsPIC33FJ64GS608 Series
These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: AC to DC Converters, DC to DC Converters, Power Factor Correction (PFC), Uninterruptible power supply (UPS), Inverters, Embedded Power-Supply Controllers, Circuit Breakers, Arc Fault Detection
