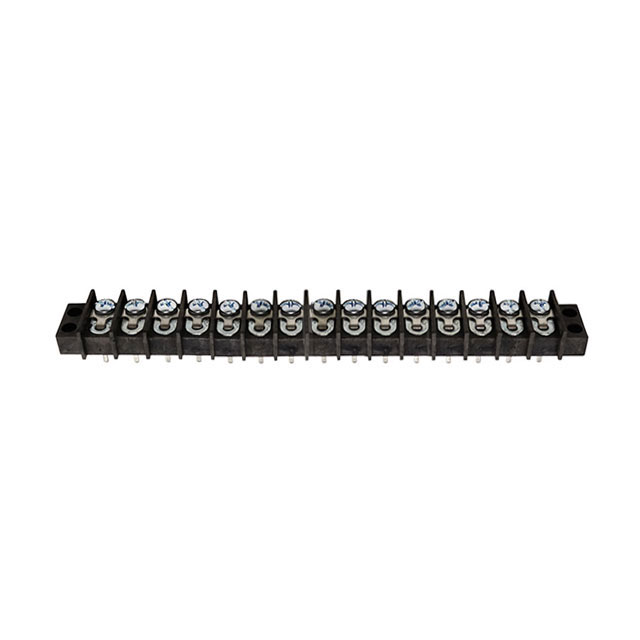

1515-Y

Active

Curtis Industries

CONN BARRIER STRP 15CIRC 0.375"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRP 15CIRC 0.375"

Technical Specifications

Parameters and characteristics for this part

Specification	1515-Y

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	15
Number of Rows	2
Number of Wire Entries	30
Operating Temperature	110 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Part	Operating Temperature	Number of Wire Entries	Material - Insulation	Pitch [x]	Pitch [x]	Material Flammability Rating	Number of Rows	Bottom Termination	Mounting Type	Terminal Block Type	Top Termination	Barrier Type	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Screw Material	Current Rating (Amps)	Features	Number of Circuits	Terminal Screw Finish
Curtis Industries 1515-YWY	110 °C	30	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	UL94 V-0	2	Wire Wrap	Chassis Panel Through Hole	Barrier Block	Screws	2 Wall (Dual)	22 AWG	10 AWG	Steel	20 A	Flange	15
Curtis Industries 1515-Y	110 °C	30	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	UL94 V-0	2	PC Pin	Chassis Panel Through Hole	Barrier Block	Screws	2 Wall (Dual)	22 AWG	10 AWG	Steel	20 A	Flange	15
Curtis Industries 1515-ST	110 °C	30	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	UL94 V-0	2	Closed	Chassis Panel	Barrier Block	Screws with Solder Lugs Dual	2 Wall (Dual)	22 AWG	10 AWG		20 A	Flange	15	Tin
Curtis Industries 1515-3/4ST	110 °C	30	Polyphenylene Oxide (PPO)	9.53 mm	0.375 in	UL94 V-0	2	Closed	Chassis Panel	Barrier Block	Screws with Solder Lugs Single	2 Wall (Dual)	22 AWG	10 AWG		20 A	Flange	15	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
