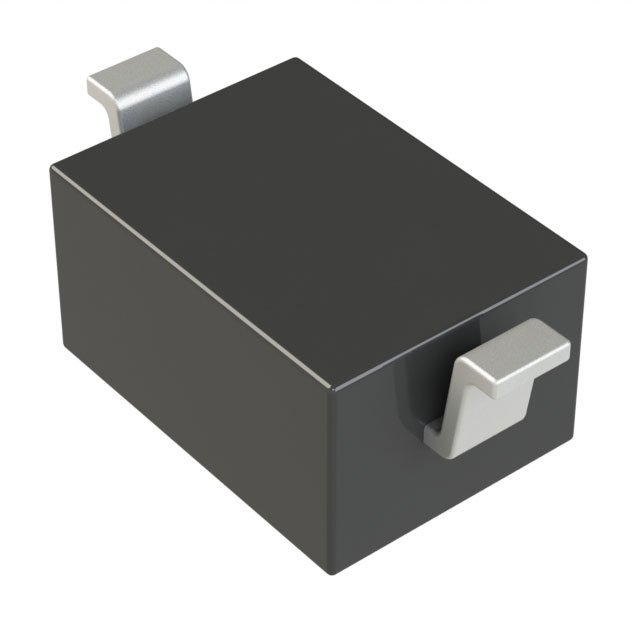

PESD12VL1BA
ActiveUMW
TVS DIODE 12VWM 26VC SOD323
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PESD12VL1BA
ActiveUMW
TVS DIODE 12VWM 26VC SOD323
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PESD12VL1BA |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 30 pF |
| Current - Peak Pulse (10/1000µs) | 10 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323, SC-76 |
| Power - Peak Pulse | 260 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-323 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 13.3 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 26 V |
| Voltage - Reverse Standoff (Typ) | 12 V |
