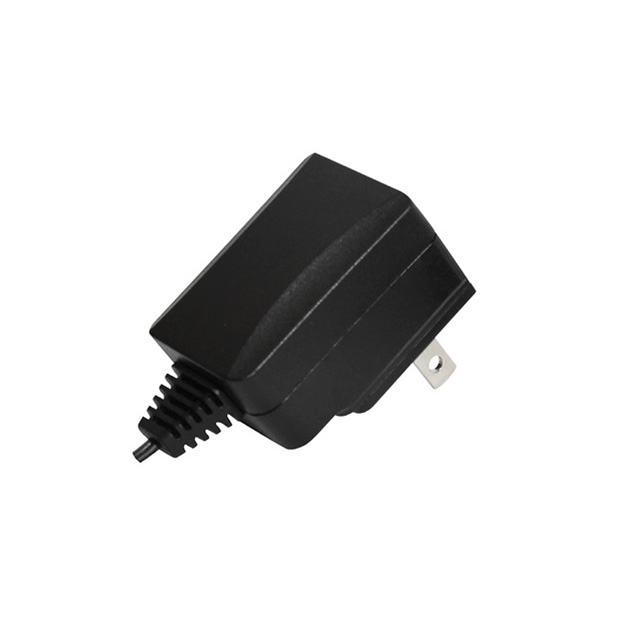

SMI6B-12-K-P7

Active

CUI Inc.

WALL MOUNT AC ADAPTERS AC-DC, 12 VDC, 0.5 A, SW, MULTI-BLADE, NO BLADES, P7 CENTER POS, LEVEL VI

Deep-Dive with AI

Search across all available documentation for this part.

SMI6B-12-K-P7

Active

CUI Inc.

WALL MOUNT AC ADAPTERS AC-DC, 12 VDC, 0.5 A, SW, MULTI-BLADE, NO BLADES, P7 CENTER POS, LEVEL VI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMI6B-12-K-P7

Applications	ITE (Commercial)
Approval Agency	IEC, RCM, PSE, UL, CSA, FCC, CCC, CB Scheme
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	500 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	3.5 mm, 1.35 mm
Output Connector [z]	9.5 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	1.85 in
Size / Dimension [x]	47 mm
Size / Dimension [y]	1.36 "
Size / Dimension [y]	34.5 mm
Size / Dimension [z]	1.04 in
Size / Dimension [z]	26.4 mm
Standard Number	C22.2 No. 60950-1, 62368-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

SMI6B Series

...

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Type	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Current - Output (Max) [Max]	Standard Number	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	No Load Power Consumption [Max]	Operating Temperature [Max]	Input Connector	Applications	Polarization	Efficiency	Voltage - Output	Approval Agency	Power (Watts)	Output Connector [z]	Output Connector [y]
CUI Inc. SMI6B-15-4-P6	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Multi-Blade (Included)	60.2 in	1.53 m	90 VAC	264 VAC	International	400 mA	60950-1 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	75 mW	40 °C	Multi-Blade (Included)	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	15 VDC	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W
CUI Inc. SMI6B-15-E-P6	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Fixed Blade	60.2 in	1.53 m	90 VAC	264 VAC	Europe	400 mA	60950-1 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	75 mW	40 °C	KSC 8305	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	15 VDC	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W
CUI Inc. SMI6B-15-N-MUB	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Fixed Blade	60.2 in	1.53 m	90 VAC	264 VAC	North America	400 mA	60950-1 62368-1 C22.2 No. 60950-1			USB Micro	Wall Mount (Class II)	75 mW	40 °C	NEMA 1-15P	ITE (Commercial)		CoC Tier 2 Level VI	15 VDC	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W
CUI Inc. SMI6B-9-4-P5R	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Multi-Blade (Included)	60.2 in	1.53 m	90 VAC	264 VAC	International	660 mA	60950-1 62368-1 C22.2 No. 60950-1		2.1 mm	Barrel Plug R/A	Wall Mount (Class II)	75 mW	40 °C	Multi-Blade (Included)	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	9 V	CB Scheme CCC CSA FCC IEC PSE RCM UL	5.9 W	9.5 mm	5.5 mm
CUI Inc. SMI6B-12-N-P6R	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Fixed Blade	60.2 in	1.53 m	90 VAC	264 VAC	North America	500 mA	60950-1 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	Wall Mount (Class II)	75 mW	40 °C	NEMA 1-15P	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	12 V	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W
CUI Inc. SMI6B-6-E-P6	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Fixed Blade	60.2 in	1.53 m	90 VAC	264 VAC	Europe	1 A	60950-1 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	75 mW	40 °C	KSC 8305	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	6 V	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W
CUI Inc. SMI6B-12-4-P6R	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Multi-Blade (Included)	60.2 in	1.53 m	90 VAC	264 VAC	International	500 mA	60950-1 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	Wall Mount (Class II)	75 mW	40 °C	Multi-Blade (Included)	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	12 V	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W
CUI Inc. SMI6B-5-V-P6R	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Multi-Blade (Included)	60.2 in	1.53 m	90 VAC	264 VAC	International	1.2 A	60950-1 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	Wall Mount (Class II)	75 mW	40 °C	Multi-Blade (Included)	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	5 V	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W
CUI Inc. SMI6B-12-K-P7	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Multi-Blade (Sold Separately)	60.2 in	1.53 m	90 VAC	264 VAC	International	500 mA	60950-1 62368-1 C22.2 No. 60950-1	1.35 mm 3.5 mm		Barrel Plug	Wall Mount (Class II)	75 mW	40 °C	Multi-Blade	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	12 V	CB Scheme CCC CSA FCC IEC PSE RCM UL	6 W	9.5 mm
CUI Inc. SMI6B-9-V-P6	1.04 in	1.36 "	1.85 in	34.5 mm	47 mm	26.4 mm	Multi-Blade (Included)	60.2 in	1.53 m	90 VAC	264 VAC	International	660 mA	60950-1 62368-1 C22.2 No. 60950-1	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount (Class II)	75 mW	40 °C	Multi-Blade (Included)	ITE (Commercial)	Positive Center	CoC Tier 2 Level VI	9 V	CB Scheme CCC CSA FCC IEC PSE RCM UL	5.9 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	3000	$ 5.88
Sager	N/A	1	$ 6.40
		10	$ 6.03
		20	$ 5.78
		100	$ 5.55

Description

General part information

SMI6B Series

12V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
