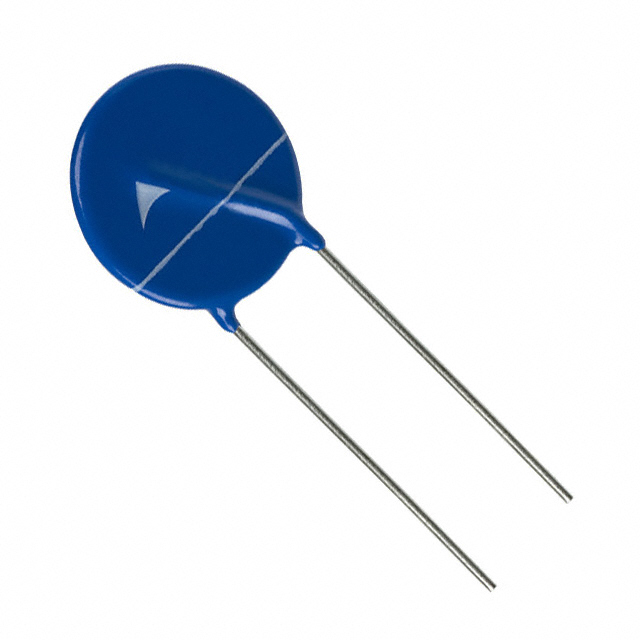

B72220Q0211K101

Active

EPCOS - TDK Electronics

VARISTOR 330V 15KA RADIAL

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 330V 15KA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Current - Surge	Number of Circuits	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Mounting Type	Maximum DC Volts [Max]	Energy	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Varistor Voltage (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Maximum AC Volts	Varistor Voltage (Max)
EPCOS - TDK Electronics B72220Q0171K101	15 kA	1	270 V	175 V	Through Hole	225 V	135 J	243 V	1800 pF	297 V	Radial	105 °C	-45 °C
EPCOS - TDK Electronics B72220Q0421K101	15 kA	1	680 V	420 V	Through Hole	560 V	340 J	612 V		748 V	Disc 20mm	105 °C	-45 °C
EPCOS - TDK Electronics B72220Q0151K101	15 kA	1	240 V	150 V	Through Hole	200 V	120 J	216 V	2000 pF	264 V	Radial	105 °C	-45 °C
EPCOS - TDK Electronics B72220Q0321K101	15 kA	1	510 V	320 V	Through Hole	420 V	255 J	459 V	1050 pF	561 V	Radial	105 °C	-45 °C
EPCOS - TDK Electronics B72220Q0251K101	15 kA	1	390 V	250 V	Through Hole	320 V	195 J	351 V	1250 pF	429 V	Radial	105 °C	-45 °C
EPCOS - TDK Electronics B72220Q0211K101	15 kA	1	330 V		Through Hole	270 V	165 J	297 V	1500 pF	363 V	Radial	105 °C	-45 °C
EPCOS - TDK Electronics B72220Q0301K101	15 kA	1	470 V		Through Hole	385 V	235 J	423 V	1050 pF	517 V	Radial	105 °C	-45 °C	300 V
EPCOS - TDK Electronics B72220Q0131K101	15 kA	1	205 V	130 V	Through Hole	170 V	100 J	184.5 V	2400 pF		Radial	105 °C	-45 °C		225.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.65

General part information

330 V 15 kA Varistor 1 Circuit Through Hole Radial
