AA-019-12-22-00-00
ActiveLaird Thermal Systems, Inc.

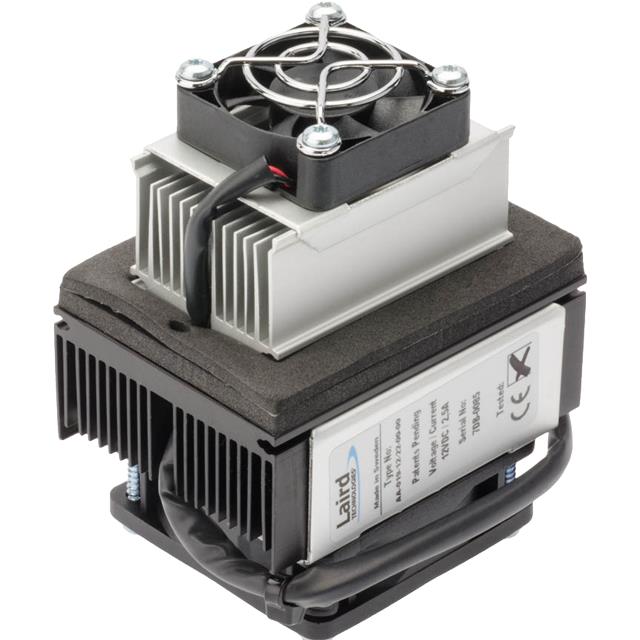

THERMOELECT ASSY AIR-AIR 20W
Deep-Dive with AI
Search across all available documentation for this part.
AA-019-12-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AA-019-12-22-00-00 |
|---|---|
| Current | 2.3 A |
| Dimensions - Overall [x] | 80 mm |
| Dimensions - Overall [y] | 62.2 mm |
| Dimensions - Overall [z] | 104.5 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 52 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 20 W |
| Power - Input | 28 W |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 254.52 | |
| 5 | $ 239.28 | |||
| 10 | $ 233.19 | |||
| 25 | $ 225.57 | |||
Description
General part information
AA-019-12 Series
Air to Air Thermoelectric Assembly 20 W
