155-38102

Active

HELLERMANNTYTON

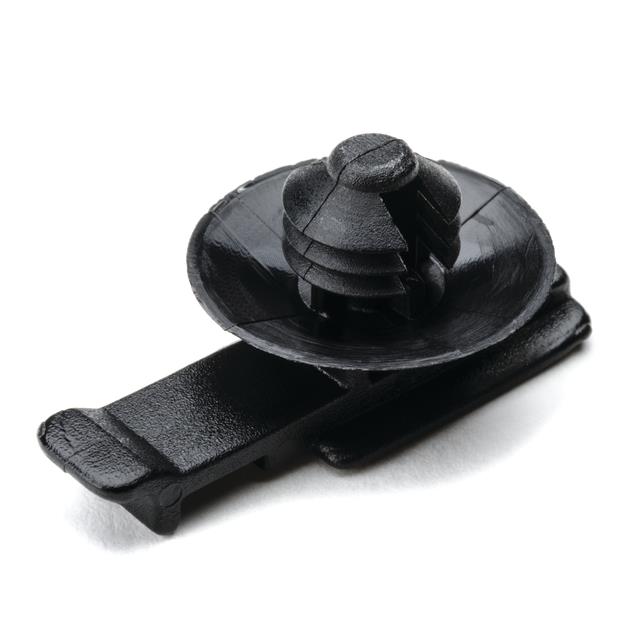

CONN. CLIP W/FIR TREE, 0.75 - 1.5 MM PANEL THICK., 6.5 - 7.0 MM HOLE DIA., PA66HIRHS, BLACK, 500/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CONN. CLIP W/FIR TREE, 0.75 - 1.5 MM PANEL THICK., 6.5 - 7.0 MM HOLE DIA., PA66HIRHS, BLACK, 500/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	155-38102

Color	Black
Features	UV Resistant, Heat Stabilized, Impact Resistant
Height [z]	0.217 "
Height [z]	5.5 mm
Length	1.063 in
Length	27 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Cupped, Fir Tree
Panel Hole Size [Max]	7 mm
Panel Hole Size [Max]	0.276 in
Panel Hole Size [Min]	6.5 mm
Panel Hole Size [Min]	0.256 in
Panel Thickness [Max]	0.059 in
Panel Thickness [Max]	1.5 mm
Panel Thickness [Min]	0.03 in
Panel Thickness [Min]	0.75 mm
Type	Connector, Clip

Part	Material	Features	Length	Length	Material Flammability Rating	Type	Mounting Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Color	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Height [z]	Height [z]	Wire/Cable Tie Type	Width [x]	Width [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Length - Actual	Length - Actual	Length - Actual	Tensile Strength	Tensile Strength
HELLERMANNTYTON 155-38102	Polyamide (PA66) Nylon 6/6	Heat Stabilized Impact Resistant UV Resistant	1.063 in	27 mm	UL94 HB	Clip Connector	Cupped Fir Tree	0.03 in	0.75 mm	0.059 in	1.5 mm	Black	7 mm	6.5 mm	0.256 in	0.276 in	0.217 "	5.5 mm
HELLERMANNTYTON 155-38304	Polyamide (PA66) Nylon 6/6	Heat Stabilized					Edge Clip					Black							Locking Standard	0.098 in	2.5 mm	20 mm	0.79 in	4 in	0.328 ft	3.93 in	100 mm	18 lbs	8.16 kg
