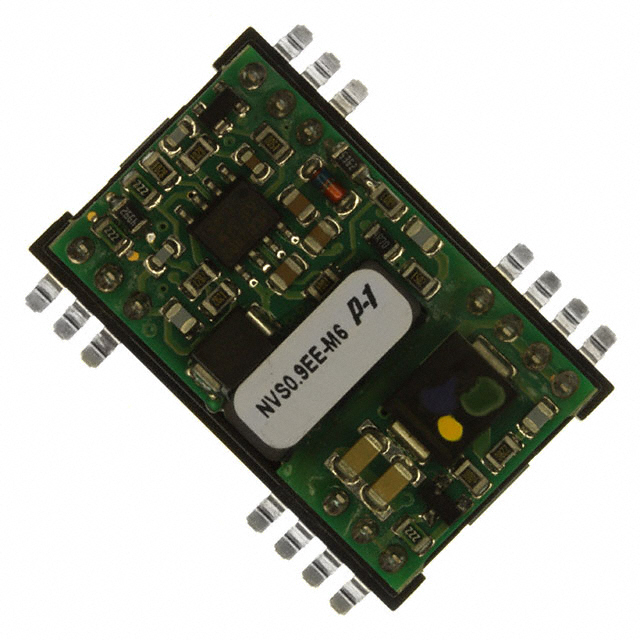

NVS0.9EE-M6
ActiveEOS Power India Private Ltd
DC DC CONVERTER 3.3V 6W
Deep-Dive with AI
Search across all available documentation for this part.
NVS0.9EE-M6
ActiveEOS Power India Private Ltd
DC DC CONVERTER 3.3V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NVS0.9EE-M6 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 900 mA |
| Efficiency | 80 % |
| Features | OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module, 14 Leads |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 0.81 in |
| Size / Dimension [y] | 20.6 mm |
| Size / Dimension [z] | 8.4 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NVS0.9EE Series
Isolated Module DC DC Converter 1 Output 3.3V 900mA 18V - 75V Input
