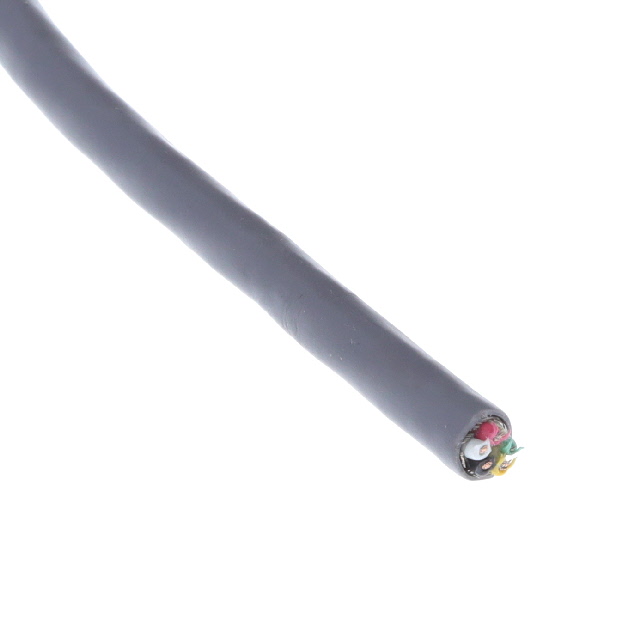

M1115 SL199

Active

ALPHA WIRE

CABLE 5COND 22AWG SHLD 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 22AWG SHLD 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M1115 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	5
Ratings	UL Style 2094
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Conductor Material	Jacket Color	Conductor Insulation	Cable Type	Number of Conductors	Length [x]	Length [x]	Voltage	Shield Material	Ratings	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Strand [custom]	Conductor Strand	Length	Length
ALPHA WIRE M1115 SL002	0.02 in	0.508 mm	90 %	Copper Tinned	Slate	Polyethylene (PE)	Multi-Conductor	5	500 '	152.4 m	300 V	Copper Tinned	UL Style 2094	Poly-Vinyl Chloride (PVC)	22 AWG	4.9 mm	0.193 in	Braid	19 Strands	34 AWG
ALPHA WIRE M1115 SL199	0.02 in	0.508 mm	90 %	Copper Tinned	Slate	Polyethylene (PE)	Multi-Conductor	5			300 V	Copper Tinned	UL Style 2094	Poly-Vinyl Chloride (PVC)	22 AWG	4.9 mm	0.193 in	Braid	19 Strands	34 AWG	914.4 m	3000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.52

General part information

5 Conductor Multi-Conductor Cable Slate 22 AWG Braid 3000' (914.4m)
