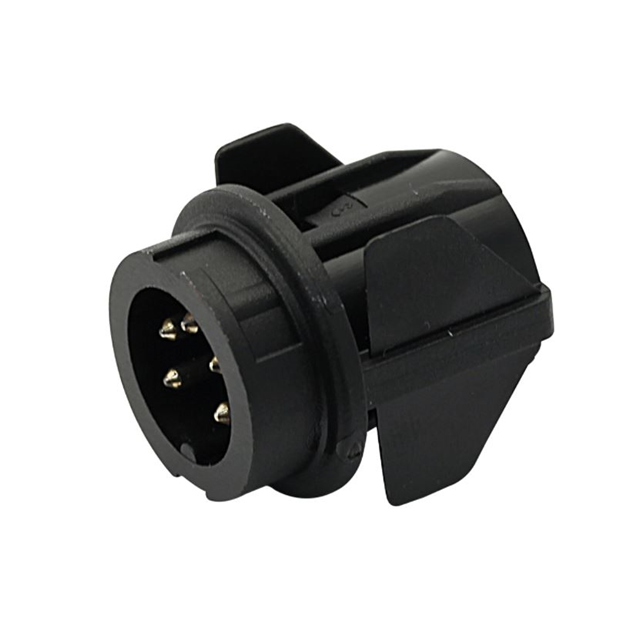

T 3526 550

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 8P PNL MT SNAPIN

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 8P PNL MT SNAPIN

Technical Specifications

Parameters and characteristics for this part

Specification	T 3526 550

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-8
Shielding	Unshielded
Type	For Male Pins

Part	Housing Color	Insert Material	Material Flammability Rating	Ingress Protection	Fastening Type	Mounting Type	Shell Material	Contact Type	Connector Type	Note	Shell Size - Insert	Orientation	Contact Shape	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions	Contact Size
Amphenol Tuchel Industrial T 3526 550	Black	Thermoplastic	UL94 V-0	IP40	Bayonet Lock	Panel Mount Snap-In	Plastic	Crimp	Receptacle Housing	Contacts Not Included	M16-8	Keyed	Circular	For Male Pins	100 °C	-40 °C	Unshielded	8	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle Housing Panel Mount, Snap-In
