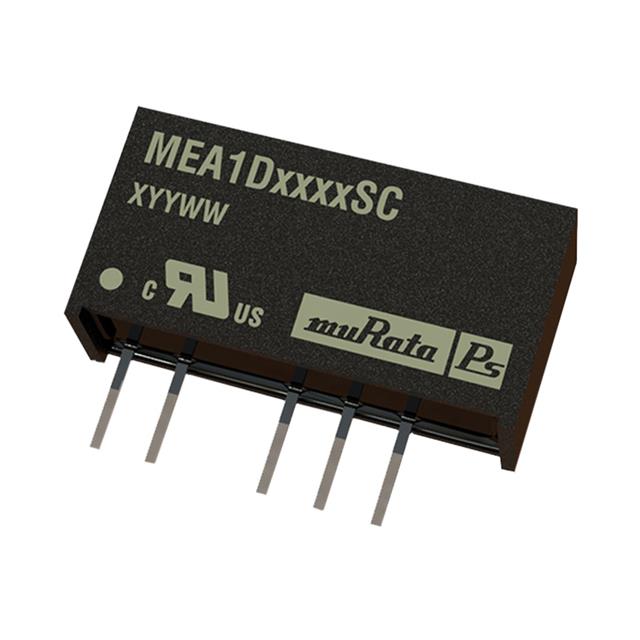

MEA1D1509SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 1 W, 2 OUTPUT, 9 V, 56 MA

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 1 W, 2 OUTPUT, 9 V, 56 MA

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Type	Applications	Voltage - Output 1	Number of Outputs	Mounting Type	Voltage - Isolation	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. MEA1D1512SC	7-SIP Module 5 Leads	85 °C	-40 °C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	16.5 V	42 mA	42 mA	Isolated Module	ITE (Commercial)	12 V	2	Through Hole	1000 V	87.5 %	13.5 V	-12 V
Murata Power Solutions Inc. MEA1D1505SC	7-SIP Module 5 Leads	85 °C	-40 °C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	16.5 V			Isolated Module	ITE (Commercial)	5 V	2	Through Hole	1000 V	84 %	13.5 V	-5 V	100 mA	100 mA
Murata Power Solutions Inc. MEA1D1509SC	7-SIP Module 5 Leads	85 °C	-40 °C	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	16.5 V			Isolated Module	ITE (Commercial)	9 V	2	Through Hole	1000 V	87 %	13.5 V	-9 V
Murata Power Solutions Inc. MEA1D1512DC	14-DIP Module 6 Leads	85 °C	-40 °C	19.7 mm	0.28 "	10 mm	0.78 "	0.39 "	7 mm	16.5 V	42 mA	42 mA	Isolated Module	ITE (Commercial)	12 V	2	Through Hole	1000 V	87.5 %	13.5 V	-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 1 W, 2 OUTPUT, 9 V, 56 MA
