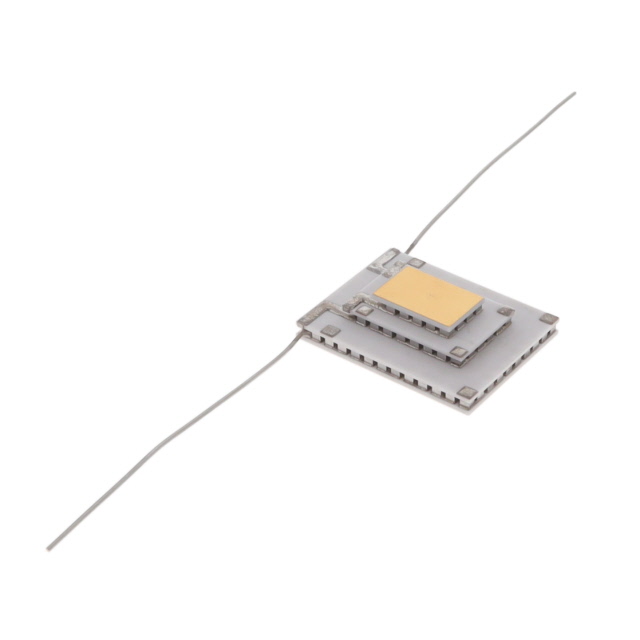

SP2402-04AB

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X6.73MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM21.72X28.27X6.73MM

Technical Specifications

Parameters and characteristics for this part

Specification	SP2402-04AB

Current - Max [Max]	5.3 A
Features	Lead Wires, Exterior Metallization
Height [z]	6.73 mm
Number of Stages	3
Qmax @ Th	8.7 W
Resistance	1.54 Ohms
Size / Dimension [x]	28.27 mm
Size / Dimension [y]	21.72 mm
Voltage - Max [Max]	8.9 V

Part	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Current - Max [Max]	Qmax @ Th	Features	Number of Stages	Voltage - Max [Max]	Resistance
Marlow Industries, Inc. SP2402-01AB	28.27 mm	21.72 mm	6.73 mm	5.3 A	8.7 W	Exterior Metallization Lead Wires	3	8.9 V	1.54 Ohms
Marlow Industries, Inc. SP2402-02AB	28.27 mm	21.72 mm	6.73 mm	5.3 A	8.7 W	Exterior Metallization Lead Wires	3	8.9 V	1.54 Ohms
Marlow Industries, Inc. SP2402-03AB	28.27 mm	21.72 mm	6.73 mm	5.3 A	8.7 W	Lead Wires	3	8.9 V	1.54 Ohms
Marlow Industries, Inc. SP2402-04AB	28.27 mm	21.72 mm	6.73 mm	5.3 A	8.7 W	Exterior Metallization Lead Wires	3	8.9 V	1.54 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 198.46

General part information

Peltier Module 8.7W @ 27°C 5.3 A 85°C
